TN-5308A-8PoE-WV-T - EN 50155 unmanaged Ethernet switch

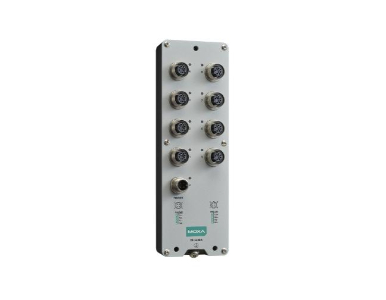

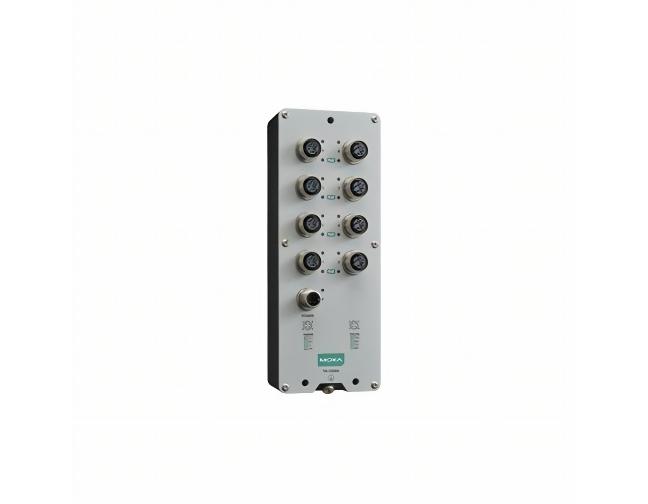

Moxa TN-5308A-8PoE-WV-T - EN 50155 unmanaged Ethernet switch with 8 10/100BaseT(X) PoE ports, M12 connector, single power input
by MOXA

TN-5308A-8PoE-WV-T_SUMMARY.html

Rugged die-cast design for use in harsh environments
Isolated power input range from 24 to 110 VDC
Supports regular and push-pull M12 connectors
Complies with all EN 50155 mandatory test items
-40 to 70°C wide-temperature design

Description
Specification
Datasheet

TN-5308A-8PoE-WV-T_DESCRIPTION.html

TN-5308A-8PoE-WV-T - The ToughNet TN-5300A Series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. The TN-5300A Series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable resistance against environmental disturbances, such as vibration and shock. The TN-5300A Series Ethernet switches provide 5 or 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

All TN-5300A Series models support an extended operating temperature range of -40 to 70°C. The TN-5300A Series also comply with all mandatory requirements of the EN 50155 standard including operating temperature, power input voltage, surge, ESD, and vibration, making these switches suitable for rolling stock and a variety of other industrial applications.

The TN-5300A Series features a single power input with overload, reverse polarity, and inrush current protection. Additionally, the TN-5308A PoE models provide 8 IEEE 802.3af/at compliant PoE ports. These switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port and have a total power PoE budget of 50.2 Watts.

TN-5308A-8PoE-WV-T.html

Ethernet Interface
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)	8
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.3af/at for PoE/PoE+ output

LED Interface
LED Indicators	PWR, Ethernet ports, PoE ports

Switch Properties
Packet Buffer Size	768 kbits
MAC Table Size	2 K

Power Parameters
Input Current	max 3.2 A A @ 24 VDC
Input Voltage	24/36/48/72/96/110 VDC
Max. PoE Power Output per Port	30 W
Total PoE Power Budget	50.2 W
No. of Power Inputs	1
Operating Voltage	16.8 to 137.5 VDC
Power Connector	M12 A-coded male connector
Overload Current Protection	Supported
Reverse Polarity Protection	Supported

Physical Characteristics
Housing	Metal
IP Rating	IP54
Dimensions	72.4 x 190.4 x 50.0 mm (2.85 x 7.50 x 1.97 in)
Weight	765 g (1.69 lb)
Installation	Wall mounting DIN-rail mounting (with optional kit)

Environmental Limits
Operating Temperature	-40 to 70C (-40 to 158F)
Storage Temperature (package included)	-40 to 85C (-40 to 185F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	3000 m

Standards and Certifications
EMC	EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Radio Frequency	FCC
Environmental Testing	IEC 60068-2-1, EN 50155 IEC 60068-2-14, EN 50155 IEC 60068-2-2, EN 50155 IEC 60068-2-30, EN 50155 IEC 60068-2-78
Railway	EN 50121-4 EN 50155 IEC 60571
Railway Fire Protection	EN 45545-2
Safety	IEC 62368-1 UL 62368-1 EN 62368-1
Salt Spray Test	EN 50155
Shock	IEC 60068-2-27, IEC 61373, EN 50155
Vibration	IEC 60068-2-64, IEC 61373, EN 50155
Package Vibration Test	ISTA 1A
Package Drop Test	ISTA 1A
