TN-G4516-8GPoE-4XGPoE-WV-T - Fast Ethernet module with 8 100BaseSFP slots for PT Series
by MOXA

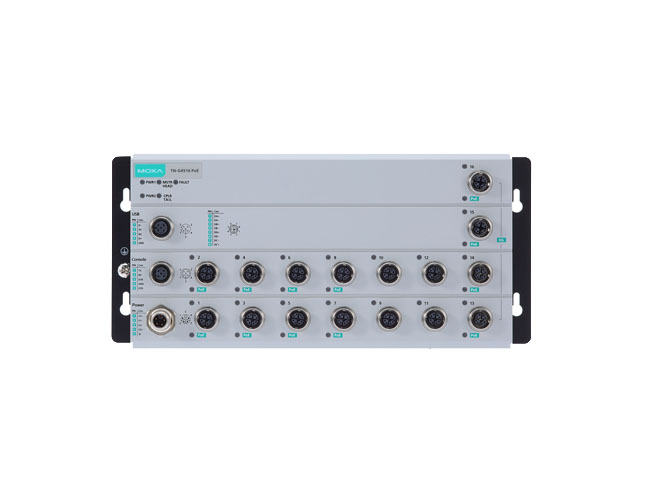

The ToughNet TN-G4500 Series, TN-G4516-8GPoE-4XGPoE-WV-T, M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. These switches are equipped with M12 and similar circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibrations and shock are commonplace. The TN-G4500 Series Ethernet switches provide 4 10G Ethernet M12 ports with PoE functionality, 16 Gigabit Ethernet M12 ports, and 8 ports with PoE functionality. These PoE switches are classified as power source equipment (PSE), capable of providing up to 30 watts of power per port to IEEE 802.3at/af-compliant powered devices (PDs), such as IP cameras and wireless access points.

The TN-G4500 Series has M12 connectors that are tailor-made for push-pull cables to facilitate quick installation and allow M12 rotary cables to be utilized. The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. Furthermore, the -40 to 70°C wide operating temperature range allows deployment in harsh environments. The TN-G4500 Series complies with the essential sections of the EN 50155 standard, covering operating temperature, power input voltage, surge, ESD, vibration, power isolation, and features models with conformal coating to ensure suitability for a variety of industrial applications.

Additional Features and Benefits

• Provides up to 30 watts per PoE port with a total power budget of 120 watts per switch

• DHCP Option 82 for IP address assignment with different policies

• IGMP snooping and GMRP for filtering multicast traffic

• Supports the EtherNet/IP and Modbus/TCP industrial Ethernet protocols

• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

• QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization

• IEEE 802.3ad LACP for optimal bandwidth utilization

• SNMPv1/v2c/v3 for different levels of network management

• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

• RMON for efficient network monitoring and proactive capability

• Bandwidth management prevents unpredictable network conditions

• Port locking to only allow access to authorized MAC addresses

• Port mirroring for online debugging

• Automatic warning notifications through email and relay output

• Line-swap fast recovery

• LLDP for automatic topology discovery in network management software

• Configurable by web browser, Telnet/serial console, CLI, and Windows utility

• Loop protection to prevent network loops

• Wall mounting installation

Serial Interface

• No. of Ports

  2

• Serial Standards

  RS-232, RS-422, RS-485

• Baudrate

  50 bps to 921.6 kbps (supports non-standard baudrates)

• Flow Control

  ADDC® (automatic data direction control) for RS-485

• Pull High/Low Resistor for RS-485

  1 kilo-ohm, 150 kilo-ohms

• RS-485 Data Direction Control

  ADDC® (automatic data direction control)

• Terminator for RS-485

  N/A, 120 ohms, 120 kilo-ohms

• Connector

  7-pin terminal block

• Latency

  300 ns

Serial Signals

• RS-232

  TxD, RxD, GND

• RS-422

  Tx+, Tx-, Rx+, Rx-, GND

• RS-485-4w

  Tx+, Tx-, Rx+, Rx-, GND

• RS-485-2w

  Data+, Data-, GND

Power Parameters

• No. of Power Inputs

  1

• Input Current

  70 to 140 mA @ 12 to 48 VDC

• Input Voltage

  12 to 48 VDC

• Overload Current Protection

  Supported

• Power Connector

  Terminal block

• Power Consumption

  70 to 140 mA @ 12 to 48 VDC

Physical Characteristics

• IP Rating

  IP30

• Housing

  Metal

• Dimensions (with ears)

  90 x 100 x 22 mm (3.54 x 3.94 x 0.87 in)

• Dimensions (without ears)

  67 x 100 x 22 mm (2.64 x 3.94 x 0.87 in)

• Weight

  320 g (0.71 lb)

• Installation

  Wall mounting

Environmental Limits

• Operating Temperature

  Standard Models: 0 to 60°C (32 to 140°F)
  Wide Temp. Models: -40 to 75°C (-40 to 167°F)

• Storage Temperature (package included)

  -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity

  5 to 95% (non-condensing)

Standards and Certifications

• EMC

  EN 55032/24

• EMI

  CISPR 32, FCC Part 15B Class A

• EMS

  IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 1 kV
  IEC 61000-4-5 Surge: Power: 1 kV
  IEC 61000-4-6 CS: 3 V
  IEC 61000-4-8 PFMF

• Environmental Testing

  IEC 60068-2-1
  IEC 60068-2-2
  IEC 60068-2-3

• Safety

  EN 60950-1, IEC 60950-1

• Vibration

  IEC 60068-2-6

MTBF

• Time

  780,480 hrs

• Standards

  Telcordia (Bellcore), GB
