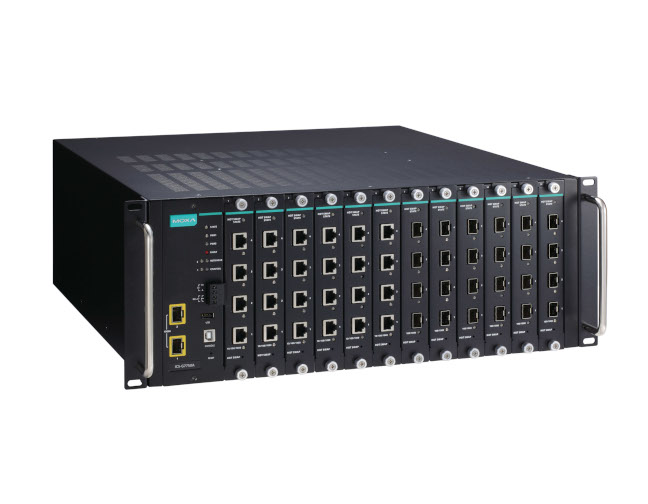

Moxa ICS-G7750A-2XG-HV-HV - Layer 2 Full Gigabit managed Ethernet switch with 12 slots for 4-port 10/100/1000BaseT(X) module or
by MOXA
|
|
|
|
- Moxa managed ethernet switch - ICS-G7748A Rackmount Switches Series
- Up to 48 Gigabit Ethernet ports plus 4 10G Ethernet ports
- Up to 52 optical fiber connections (SFP slots)
- Fanless, -10 to 60°C operating temperature range
- Modular design for maximum flexibility and hassle-free future expansion
- Hot swap interface and power modules for continuous operation
- Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
- Isolated redundant power inputs with universal 110/220 VAC power supply range
|
|
|
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7748A/G7750A/G7752A/G7848A/G7850A/G7852A series full Gigabit backbone switches’modular design makes network planning easy, and allows greater flexibility by letting you install up to 48 Gigabit Ethernet ports plus 4 10 Gigabit Ethernet ports. The ICS-G7748A/G7750A/G7752A/G7848A/G7850A/G7852A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy protocols, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
| • Technology |
| Standards |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3ae for 10 Gigabit Ethernet
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP |
| Protocols |
IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, LLDP, IEEE 1588 PTP V2, EtherNet/IP, Modbus/TCP, SNMP Inform, NTP Server/Client, IPv6 (ICS-G7700A series) |
| MIB |
MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Groups 1, 2, 3, 9 |
| Flow Control |
IEEE 802.3x flow control, back pressure flow control |
| • Switch Properties |
| Priority Queues |
8 |
| Max. Number of Available VLANs |
256 |
| VLAN ID Range |
VID 1 to 4094 |
| IGMP Groups and Multicast Route |
1000 |
| MAC Table Size |
16 K |
| Packet Buffer Size |
12 Mbit |
| DRAM Size |
128 MB |
| Flash Size |
16 MB |
| Jumbo Frame Size |
9.6 KB |
| Switching Fabric Capacity |
ICS-G7748A/G7848A: 96 Gbps
ICS-G7750A/G7850A: 136 Gbps
ICS-G7752A/G7852A: 176 Gbps |
| Forwarding Rate |
Max. 130.95 Mpps (packets per second) |
| • Interface |
| Gigabit Ethernet |
12 slots for 4-port interface modules, 10/100/1000BaseT(X) or 100/1000BaseSFP slots |
| Note |
See the IM-G7000A datasheet for Gigabit Ethernet module product information. |
| 10 Gigabit Ethernet |
2 or 4 10GbE SFP+ slots (ICS-G7750A/G7850A and ICS-G7752A/G7852A only) |
| Console Port |
USB-serial console (Type B connector) |
| Storage Port |
USB storage (Type A connector for ABC-02-USB) |
| LED Indicators |
STATE, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 1/2/3/4 for 10GbE port (ICS-G7750A/G7850A and ICS-G7752A/G7852A only) |
| Alarm Contact |
1 relay output with current carrying capacity of 2 A @ 30 VDC |
| Digital Inputs |
1 input with the same ground, but electrically isolated from the electronics.• +13 to +30 V for state “1”
• -30 to +1 V for state “0”
• Max. input current: 8 mA |
| • Power Requirements |
| Input Voltage |
110/220 VAC (85 to 264 VAC) |
| Input Current |
ICS-G7748A/G7848A: Max. 1.02/0.6 A @ 110/220 VAC
ICS-G7750A/G7850A: Max. 1.1/0.64 A @ 110/220 VAC
ICS-G7752A/G7852A: Max. 1.19/0.68 A @ 110/220 VAC |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| • Physical Characteristics |
| Housing |
IP30 protection |
| Dimensions |
440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in) |
| Weight |
12.9 kg |
| Installation |
19’’ rack mounting |
| • Environmental Limits |
| Operating Temperature |
-10 to 60°C (14 to 140°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| • Standards and Certifications |
| Safety |
UL 60950-1, EN 60950-1 |
| EMI |
FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS |
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11 |
| Rail Traffic |
EN 50121-4 |
| Shock |
IEC 60068-2-27 |
| Freefall |
IEC 60068-2-32 |
| Vibration |
IEC 60068-2-6 |
| Note |
Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) |
| Time |
ICS-G7748A/G7848A: 314,973 hrs
ICS-G7750A/G7850A: 282,329 hrs
ICS-G7752A/G7852A: 274,488 hrs |
| Database |
Telcordia (Bellcore), GB |
|
|
|
|
|
|
