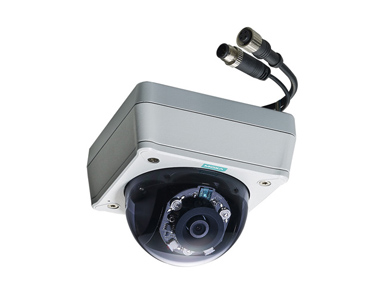

VPort P16-2MR36M - EN 50155, day& night, IR, FHD IP Camera, 3.6mm lens, PoE, M12 connector, -25 to 55 Degree C by MOXA
|
|
|
- Complies with all EN 50155 mandatory test items* (T1 temperatures: -25 to 55°C; TX temperatures: -40 to 70°C)
- 1/3” progressive scan camera with maximum 1920 x 1080 resolution at up to 30 FPS
- Built-in IR illuminator and ICR (Infrared Cut-filter Removal) for day & night images
- High quality video image with DNR and WDR
- Up to 4 H.264 or MJPEG independent simultaneous video streams
- DynaStream™ for optimized network efficiency
- CBR Pro™ for high image quality in limited bandwidth transmissions
- Supports SDXC (up to 1 TB SD card) for local storage
- 1 built-in audio input or microphone
- ONVIF comformity for standardization and interoperability
*This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard.
|
|
|
The rugged VPort P16-2MR, VPort P16-2MR36M, cameras produce Full FHD (1920 x 1080) video images and feature an H.264/MJPEG IP camera dome, giving them the versatility and ruggedness needed for mobile IP video surveillance applications in a variety of different installations and environments. In addition, the cameras feature EN 50155 compliance, vandal-proofing (EN 62262 IK8), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power input, a built-in microphone, a digital input, IP66 rain and dust protection, and an IR illuminator for day & night image capability.
• Camera |
Sensor |
1/3” HD progressive scan CMOS |
Lens |
3.6, 4.2, 6, 8 mm fixed focal lengths |
Angle of View |
• 3.6 mm, F1.6: Diagonal 82°, Horizontal 70°, Vertical 40°
• 4.2 mm, F1.6: Diagonal 70°, Horizontal 60°, Vertical 34°
• 6.0 mm, F1.8: Diagonal 46°, Horizontal 41°, Vertical 23°
• 8.0 mm, F1.6: Diagonal 35°, Horizontal 31°, Vertical 18° |
Illumination (low light sensitvity) |
• Color: 0.2 Lux @ F1.2
• B/W: 0.05 Lux @ F1.2 (0 lux if IR illuminator is on) |
Camera Angle |
Pan 350°, Tilt 65° (controlled manually) |
ICR Control (for day & night) |
Auto |
IR Illumination |
3 IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensor. |
Synchronization |
Internal |
White Balance |
ATW/AWB |
Electronic Shutter |
Auto, Fixed (1/30 to 1/25000 sec) |
DNR |
Built-in |
WDR |
On/Off, up to 100 dB |
AGC (auto gain control) |
2X, 4X, 8X, 16X |
Flickerless Control |
Automatic, 50 Hz, 60 Hz |
Auto Exposure |
Level ±5 |
Image Rotation |
Flip, Mirror, 90°, 180°, 270° rotation |
Image Setting |
Manual tuning with saturation, sharpness, and contrast |
Black Level Control |
High/Medium/Low |
• Video |
Video Compression |
H.264 (ISO/IEC 14496-10) or MJPEG |
Video Output |
via Ethernet |
Video Streams |
4 |
Video Resolution and FPS (frames per second) |
|
Video Viewing |
• CBR Pro™ for good image quality in limited bandwidth transmissions
• DynaStream™ support for automatic frame rate adjustment
• 3 configurable privacy mask areas
• Adjustable image size and quality
• Timestamp and text overlay
• OSD (On Scr |
• Audio |
Audio Inputs |
1, built-in microphone |
Audio Format |
PCM (G.711), AAC |
• Network |
Protocols |
TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, QoS, IGMPv3, SNMPv1/v2c/v3, DDNS, TFTP, ARP, DHCP, OPT66/67, IPv6, SIP |
Ethernet |
1 10/100BaseT(X) isolated Ethernet port, 4-pin M12 Dcode female connector, with 20 cm cable |
• Local Storage |
SD Socket |
Micro SD socket |
Interface |
SDXC (can support up to 1 TB) |
• GPIO |
Digital Inputs |
1, 5-pin M12 male connector with 20 cm cable• High: +13 V to +30 V
• Low: -30 V to +3 V |
• Power Requirements |
Input |
Power-over-Ethernet (IEEE 802.3af) |
Power Consumption |
12.5 W (max.) |
• Physical Characteristics |
Housing |
Metal housing and dome cover with IP66 rain and dust protection |
Dimensions |
125 x 125 x 120.7 mm (5.6 x 5.6 x 4.8 in) |
Weight |
820 g (1.8 lb) |
Installation |
Surface (ceiling) mounting, flush (recessed) mounting |
• Alarms |
Intelligent Video |
Camera tamper |
Video Motion Detection |
3 independently configurable areas |
Shock |
G sensor for shock detection |
Scheduling |
Daily repeat timing schedule |
Imaging |
JPEG snapshots for pre/trigger/post alarm images |
Custom Alarms |
HTTP event servers for setting customized alarm actions |
Email/FTP Messaging |
Automatic transfer of stored images via email or FTP as event-triggered actions |
Pre-alarm Buffer |
50 MB video buffer for JPEG snapshot images |
• Security |
Password |
User level password protection |
Filtering |
By IP address |
Encryption |
HTTPS, SSH |
• Environmental Limits |
Operating Temperature |
Standard models: -25 to 55°C (-13 to 131°F)
Wide Temp. models: -40 to 70°C (-40 to 158°F) |
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
Altitude |
2000 m |
Note |
Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
• Standards and Certifications |
Safety |
UL 60950-1 |
Rail Traffic |
EN 50155*
*This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here:www.moxa.com/doc/specs/EN_50155_Compliance.pdf |
EMI |
FCC Part 15, CISPR (EN 55032) Class A |
EMS |
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 |
Shock |
IEC 61373 |
Freefall |
IEC 60068-2-32 |
Vibration |
IEC 61373 |
Vandal Resistance |
EN 62262, IK8 level |
Salt Spray Test |
ASTM B117 |
Note |
Please check Moxa’s website for the most up-to-date certification status. |
• MTBF (mean time between failures) |
Time |
997,474 hrs |
Standard |
Telcordia TR/SR |
• Warranty |
Warranty Period |
5 years |
Details |
See www.moxa.com/warranty |
• Minimum Viewing System Requirements |
CPU |
Pentium 4, 2.4 GHz |
Memory |
512 MB of memory |
OS |
Windows XP with SP3 or above, Windows 7 |
Browser |
Internet Explorer 8.x or above |
Multimedia |
DirectX 9.0c or above |
• Software Development |
VPort SDK PLUS |
Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (the latest version of SDK is available for download from Moxa’s website). |
Standard |
ONVIF Profile S |
|
|
