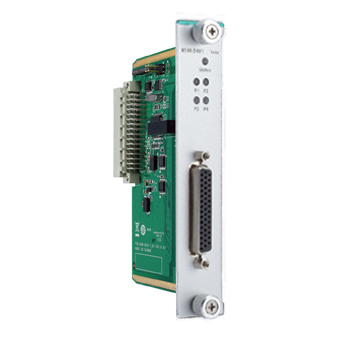

Moxa 85M-5401-T - ioPAC 85xx communication module, 4-port Serial, DB44 connectors, -40 to 75 Degree C
by MOXA
|
|
|
|
4 serial ports
DB44 to 4-port DB9 cable included in the package
|
|
|
4 serial ports
DB44 to 4-port DB9 cable included in the package
| • Serial Communication |
| Interface |
4 RS-232/422/485 ports, software selectable (DB44 male) |
| Note |
DB44 to 4-port DB9 cable included in the package. |
| • Serial Communication Parameters |
| Parity |
None, Even, Odd |
| Data Bits |
7, 8 |
| Stop Bits |
1, 2 |
| Flow Control |
RTS/CTS, XON/XOFF |
| Baudrate |
300 bps to 921.6 Kbps |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Physical Characteristics |
| Connector |
DB44 male |
| • Environmental Limits |
| Operating Temperature |
-40 to 75°C |
| • Power Requirements |
| Power Consumption |
1.24 W @ 3.3 VDC |
| • MTBF (mean time between failure) |
| Time |
596,611 hrs |
| Database |
Telcordia (Bellcore) |
|
|
|
|
|
|
