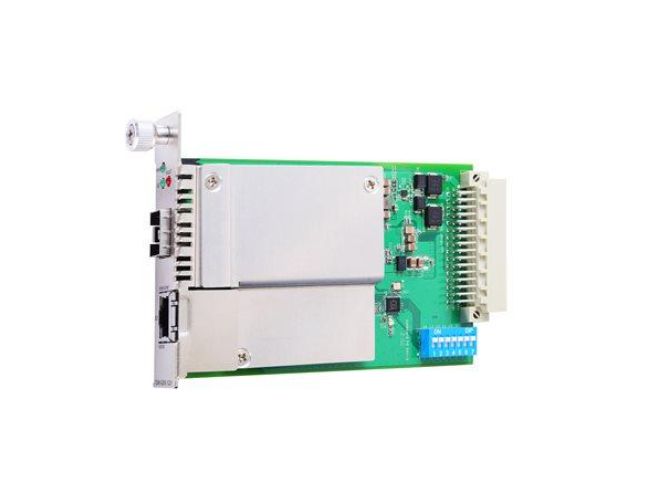

CSM-G200-1221 - 10-100-1000 BaseT(X)-to-100-1000BaseSFP slide-in media converter module
by MOXA

The CSM-G200 slide-in Ethernet-to-fiber media converters are designed for the NRack System'. The module provides media conversion from 10-100-1000BaseT(X) to 100-1000BaseFX (SFP connector), and can be installed in any NRack System' chassis.

Ethernet Interface

• 100-1000BaseSFP Ports

  • 1

• 10-100-1000BaseT(X) Ports (RJ45 connector)

  • 1

• Jumbo Frame Size

  • 10 KB

Power Parameters

• Input Current

  • 185 mA @ 12 VDC

• Input Voltage

  • 12 VDC

• Overload Current Protection

  • Supported

Physical Characteristics

• Dimensions

  • 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)

• Weight

  • Product only: 140 g (0.31 lb)

Environmental Limits

• Operating Temperature

  • 0 to 55C (32 to 131F)

• Storage Temperature (package included)

  • -40 to 85C (-40 to 185F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• EMC

  • EN 55032-35

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V-m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V-m; Signal: 3 V-m
    IEC 61000-4-8 PFMF: 30 A-m

• Environmental Testing

  • IEC 60068-2-1
    IEC 60068-2-14
    IEC 60068-2-2
    IEC 60068-2-3

• Vibration

  • IEC 60068-2-6

MTBF

• Time

  • 1,579,447 hrs

• Standards

  • MIL-HDBK-217F

Warranty

• Warranty Period

  • 5 years

• Details

  • See www.moxa.com-warranty
