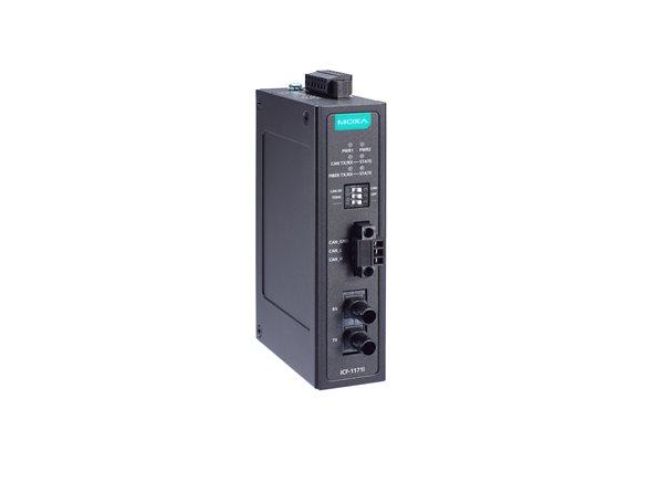

ICF-1171I-S-ST - Industrial CAN to Fiber Optic Converter for Distance Extension, ST Single-mode
by MOXA

The ICF-1171I Series CAN-to-fiber converters are used in pairs to connect two CAN 2.0 or two CAN FD devices or networks via single-mode or multi-mode optical fiber. The ICF-1171I provides 2-kV isolation protection for the CAN interface and dual power inputs to ensure that your CANbus system will work uninterrupted.

Serial Interface

• Optical Fiber

  • 100Base-Fx ports (single-mode/multi-mode ST connector)

• Optical Fiber

  • Note: The typical distance of a specific fiber transceiver can be computer using Link budget (dB) > Dispersion penalty (dB) + Total link loss (dB).

CAN Interface

• Isolation

  • 2 kV (built-in)

• No. of Ports

  • 1

• Signals

  • CAN_L, CAN_H, CAN Signal GND

• Terminator

  • N/A, 120 ohms (by DIP)

• Protocols

  • CAN 2.0A, CAN 2.0B, CAN FD, compatible with ISO 11898 standard (DIP switch to select CAN 2.0/CAN FD setting)

Fiber Interface

• No. of Ports

  • 1

• Connector

  • Single-mode ST connector

• Optical Fiber

  • Single-mode, typical distance 40 km
    Multi-mode, typical distance 2 km

Power Parameters

• Input Current

  • 188.5 mA (max.)

• Input Voltage

  • 12 to 48 VDC

• No. of Power Inputs

  • 2

• Power Connector

  • Terminal block

Relays

• Contact Current Rating

  • Resistive load: 1 A @ 30 VDC

• Pinouts

  • NC, COM, NO

Physical Characteristics

• Housing

  • Metal

• IP Rating

  • IP30

• Dimensions

  • 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)

• Weight

  • 294 g (0.65 lb)

• Installation

  • DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature

  • 0 to 60C (32 to 140F)

• Storage Temperature (package included)

  • -40 to 85C (-40 to 185F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• EMC

  • EN 55032/35

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF

• International Approval

  • KC

• Safety

  • UL 62368-1, EN 62368-1

• Vibration

  • IEC 60068-2-6

MTBF

• Time

  • 2,412,885 hrs

• Standards

  • Telcordia (Bellcore), GB
