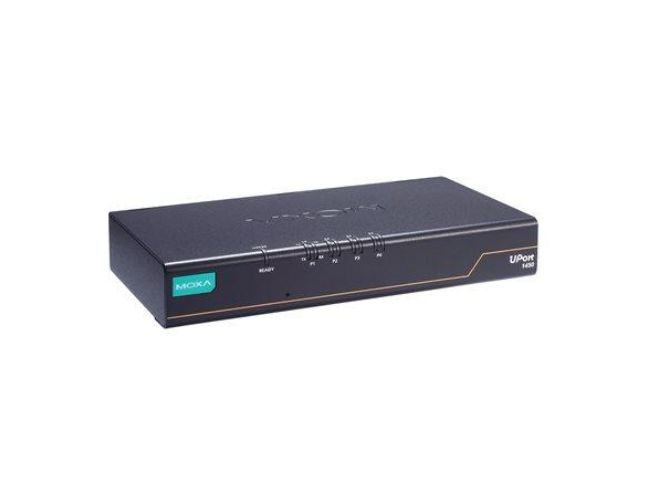

The UPort 1450I-G2 USB-to-serial converters are ideal for
laptop or workstation computers that need serial port expansion. They
are essential for computers which need to connect different serial
devices in the field or need separate interface converters for devices
without a standard COM port or DB9 connector. The computers also come
with a USB cable that has a latch and screw lock for a more secure
connection between the UPort and your computer. The UPort® 1400-G2
Series converts from USB to RS-232/422/485. All products are compatible
with legacy serial devices and can be used with instrumentation and
point-of-sale applications.
UPort 1450I-G2.html
USB Interface
-
USB Standards
- USB 3.2 Gen 1
USB 1.1/2.0 compliant
-
Speed
- 5 Gbps, 480 Mbps, 12 Mbps
-
No. of USB Ports
-
USB Connector
Serial Interface
-
Connector
-
No. of Ports
-
Serial Standards
-
FIFO
-
Baudrate
- 50 bps to 921.6 kbps (supports non-standard baudrates)
-
Parity
- None, Even, Odd, Space, Mark
-
Data Bits
-
Stop Bits
-
Flow Control
-
RS-485 Data Direction Control
- Automatic Data Direction Control (ADDC)
-
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
-
Terminator for RS-485
-
Surge
-
Isolation
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
RS-422
-
RS-485-4w
-
RS-485-2w
Serial Software Features
-
Windows Drivers
- Windows 11, 10, 8.1, 8 and 7
Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2
-
Linux Drivers
-
Mac Drivers
- macOS version (Intel 64): 13, 12, 11 and 10.1x
-
Virtual Machine
- VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64)
VMWare ESXi (Linux kernel
4) Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)
-
Arm�-based Platform Support
- Linux kernel 6.x, 5.x and 4.x
-
Android API
Power Parameters
-
Input Voltage
- 5 VDC by USB bus power or 12 to 48 VDC by external power adaptor
-
Input Current
- 445 mA @ USB 2.0
633 mA @ USB 3.2 340 mA @ 12 VDC
Physical Characteristics
-
Housing
-
Dimensions
- 185 x 30 x 90.6 mm (7.28 x 1.18 x 3.57 in)
-
Weight
-
IP Rating
Environmental Limits
-
Operating Temperature
-
Storage Temperature
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC
61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV kV IEC
61000-4-6 CS: 3 V; 150 kHz to 80 MHz IEC 61000-4-8 PFMF
-
Safety
- IEC 62368-1
EN 62368-1 UL 62368-1 (CB) KC
-
Green Product
-
Shock
-
Vibration
- IEC 60068-2-6
IEC 60068-2-64
-
Freefall
MTBF
-
Standards
- Telcordia Standard SR332, Telcordia Issue 2
-
Time
|
