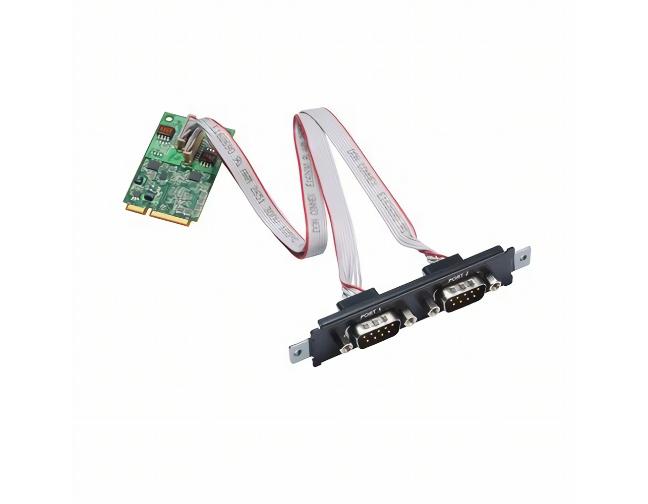

Moxa CP-112N-T - 2-port RS-232/422/485 Mini PCI Express serial board, -40C to 85 operating temperature
by MOXA
|
|
|
|
CP-112N-T_SUMMARY.html
CP-112N-T - 2-port RS-232/422/485 Mini PCI Express serial board, -40C to 85 operating temperature
|
|
|
CP-112N-T_DESCRIPTION.html
CP-112N-T - is a Mini PCI Express multiport serial board designed for various applications such as industrial automation systems and for industrial PC manufacturers. The CP-112N is compatible with most Mini PCI Express slots. The board requires only a 3.3 VDC power supply, which means it can work with host computers ranging from DIN-rail PCs to standard-sized PCs. The CP-112N is a top choice of industrial automation engineers and system integrators and supports Windows and Linux operating systems. In addition, the two RS-232/422/485 serial ports support a fast 921.6 kbps baudrate. The CP-112N provides full-modem control signals to ensure compatibility with a wide range of serial peripherals. The board also provides 1 kV line-to-line surge protection, ensuring compatibility in a wide range of industrial environments.
CP-112N-T.html
| Serial Interface |
|---|
| Comm. Controller | 16C550C compatible | | Bus | Mini PCI Express | | Connector | DB9 male | | FIFO | 128 bytes | | No. of Ports | 2 | | Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) | | Data Bits | 5, 6, 7, 8 | | Stop Bits | 1, 1.5, 2 | | Parity | None Even Odd Space Mark | | Flow Control | None RTS/CTS XON/XOFF | | Serial Standards | RS-232/422/485 (software-selectable) |
| Serial Signals |
|---|
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND | | RS-422 | Tx+, Tx-, Rx+, Rx-, GND | | RS-485-2w | Data+, Data-, GND | | RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| Serial Software Features |
|---|
| Windows Drivers | Windows 11, 10, 8.1, 8, 7, 2008, Vista, 2003, XPWindows Server 2022, 2019 (64-bit), 2016, 2012 R2, 2012, 2008 R2Windows Embedded CE 6.0 and 5.0, Windows XP Embedded | | Linux Drivers | Linux kernel 5.x Linux kernel 4.x |
| Power Parameters |
|---|
| Input Current | 536 mA @ 3.3 VDC |
| Physical Characteristics |
|---|
| Dimensions | 30 x 50.95 mm (1.18 x 2 in) |
| Environmental Limits |
|---|
| Operating Temperature | -40 to 85C (-40 to 185F) | | Storage Temperature (package included) | -20 to 85C (-4 to 185F) | | Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications |
|---|
| EMC | EN 55032/35 | | EMI | CISPR 32, FCC Part 15B Class A | | EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| Declaration |
|---|
| Green Product | RoHS, CRoHS, WEEE |
| MTBF |
|---|
| Time | 3, 524, 230 hrs | | Standards | Telcordia (Bellcore) Standard TR/SR |
|
|
