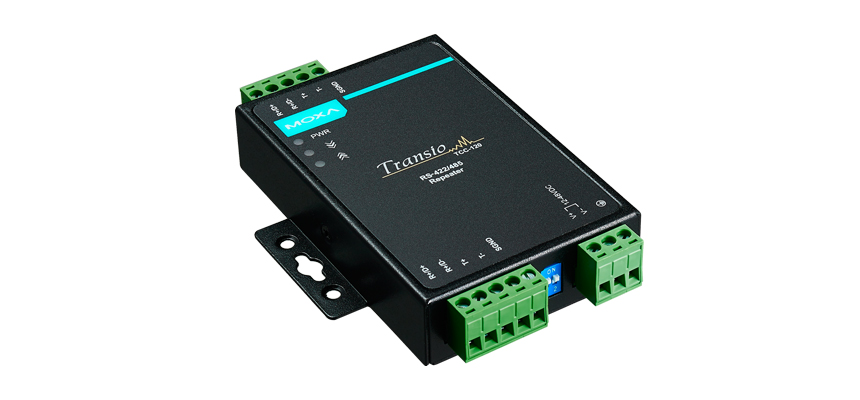

TCC-120I - Industrial RS-422/485 Isolator/Repeater by MOXA
|
|
|
- Boost serial signal to extend transmission distance
- Wall or DIN-Rail mounting
- Terminal block for easy wiring
- Power input from terminal block
- DIP switch setting for built-in terminator (120 ohm)
- Boost RS-422 or RS-485 signal, or convert RS-422 to RS-485
- 2 kV isolation protection (TCC-120I)
y: arial, 宋体, sans-serif; line-height: 24px; color: rgb(0, 0, 0); font-style: normal; font-variant: normal; font-weight: normal; letter-spacing: normal; orphans: auto; text-align: left; text-indent: 0px; text-transform: none; white-space: normal; widows: 1; word-spacing: 0px; -webkit-text-stroke-width: 0px; background-color: rgb(255, 255, 255);">
|
|
|
The TCC-120 and TCC-120I are RS-422/485 converters/repeaters designed to extend RS-422/485 transmission distance. Both products have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, and external terminal block for power. In addition, the TCC-120I supports optical isolation for system protection. The TCC-120 and TCC-120I are ideal RS-422/485 converters/repeaters for critical industrial environments.
• Serial Communication |
Connectors |
Terminal Block on both ends |
Baudrate |
50 bps to 921.6 kbps |
Signals |
RS-422/485-4w: TxD+, TxD-, RxD+, RxD-
RS-485-2w: Data+, Data- |
RS-485 Data Direction Control |
ADDC® (automatic data direction control) |
ESD Protection |
15 kV for all signals |
Optical Isolation |
2 kV (TCC-120I only) |
• Physical Characteristics |
Housing |
Metal |
Dimensions |
67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in) |
Weight |
148 ± 5 g |
• Environmental Limits |
Operating Temperature |
-20 to 60°C (-4 to 140°F) |
Storage Temperature |
-20 to 75°C (-4 to 167°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
• Power Requirements |
Source of Power Input |
Power input jack |
Input Voltage |
12 to 48 VDC |
Power Consumption |
TCC-120: 65 mA @ 12 V
TCC-120I: 180 mA @ 12 V |
Voltage Reversal Protection |
Protects against V+/V- reversal |
Over Current Protection |
Protects against two signals shorted together |
• Standards and Certifications |
Safety |
UL 60950-1 |
EMC |
CE, FCC |
EMI |
FCC Part 15 Subpart B Class B |
EMS |
EN 61000-4-2 (ESD) Level 2,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 (PFMF) Level 1 |
Green Product |
RoHS, CRoHS, WEEE |
• MTBF (mean time between failures) |
Time |
1,949,025 hrs |
Database |
Telcordia (Bellcore), GB |
|
|
