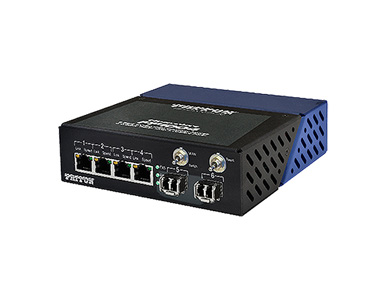

FP1004E/L22/EUI - Light Industrial 6 Port 10/100/1000 Ethernet Switch; 4 Copper + 2 SFP Cage, 1 x 1310 Multimode Optical Modules by PATTON

FP1004E/L22/EUI - Light Industrial 6 Port 10/100/1000 Ethernet Switch; 4 Copper + 2 SFP Cage, 1 x 1310 Multimode Optical Modules
by PATTON

Write a review Write a review
  • Flow control for full duplex and half duplex
  • Supports up to 10k byte JUMBO frame
  • Supports port-based VLANs and tag-based VLANs
  • Extended temperature -10 to 70C
  • Power Adapter included



Mfg SKU # : FP1004E/L22/EUI
Our Price : $567.00
Stock : Call for Availability
Quantity :

The Patton Model FP1004E-L22-EUI is a powerful 6-port 10/100/1000 Light Industrial Ethernet switch. The unit features (4) RJ-45 UTP ports as well as (2) flexible SFP ports. Two or more FP1004E can be chained together via fiber to provide a distributed solution where isolation, distance, security and/or noise immunity is needed between nodes.

Locally, an 8 copper x 2 optical switch can be created using a Passive SFP Cable Assembly between SFP ports. This cable saves cost by replacing (2) optical modules and a fiber cable with an inexpensive copper jumper. While this solution is only good for very short ‘jumper’ lengths, it provides flexibility for local port expansion.

The FP1004E is housed in the commercial ‘Throw Down’ packaging. This version is designed to be a work horse unit in various commercial and industrial environments. It is powered either by a 9VDC AC power adapter (included) or via bused power supplied through an integrated three pin Phoenix™ connector. Up to three FP1004E units can be installed in the optional 1U TDR-01 rack shelf or DIN rail mounted.

The flexibility of the SFP ports allows for full 1000BASE-X support standard. Simply by selecting the appropriate SFP module a standards compatible GbE port can be created. Each SFP can actually be configured separately; this can be useful if networks based on two different standards needs to be bridged.

The flexibility of the SFP ports allows for full 1000BASE-X support as defined by the IEEE 802.3-2008 GbE standard. Simply by selecting the appropriate SFP module according to the chart below, a standards compatible GbE port can be created. Each SFP can actually be configured separately; this can be useful if networks based on two different standards needs to be bridged.

The specifications for this product are contained in the User Manual
