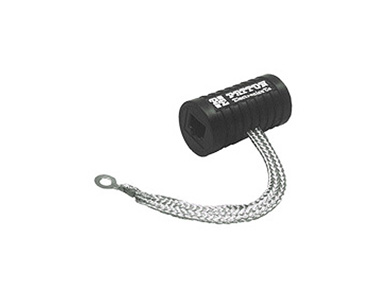

Patton 510/6 - 4 LINE MODULAR S. PROT. RS-422
by PATTON
|
|
|
|
- Model 510 Protects Four Wires on the RJ-11 Connector (Combined Surge Handling of 2400 Watts
- Model 512 Protects Eight Wires on the RJ-45 Connector (Combined Surge Handling of 4800 Watts)
- Heavy Braided Ground Strap Diverts Surge Energy to Frame Ground
- Clamping at 18 Volts for RS-232 and 7.5 Volts for RS-422
- "Fail Safe" Design Guards Hardware in Case of Severe Surge
- Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
|
|
|

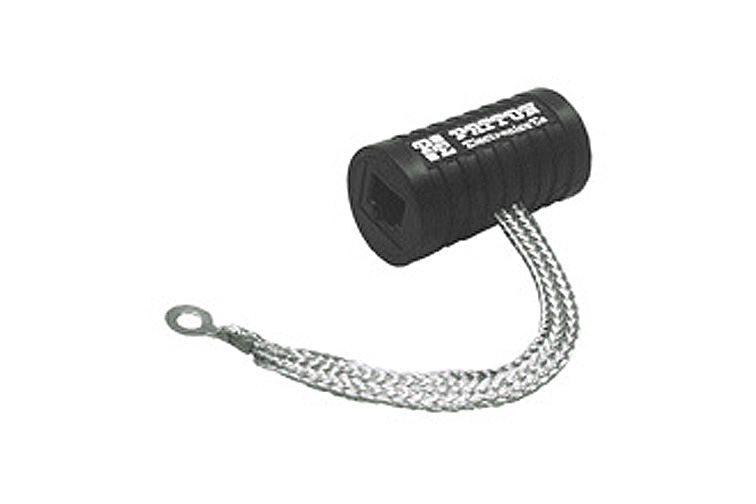

The Patton Model 510-6 surge protectors let you choose 4 or 8 wire protection for either an RS-232 or RS-422 modular interface. These ultra-miniature protectors fit almost anywhere and handle transient surges up to 600 watts per wire. Harmful surge energy is diverted safely to chassis ground using a built-in braided metal strap. Should these protectors encounter a severe surge above their rated capacity, they will divert all voltages to ground. This means that the surge protector will sacrifice itself to protect the network.
|
|
|
|
