SN5600/4B/EUI - SmartNode high performance eSBC, 4 SIP Calls no RTP transcoding (SIP b2b UA) upgradeable (max. 1`000), 2x Gig Et by PATTON
|
|
|
- VoIP Security - Network separation with SIP back-to-back UA, intrusion protection, DoS prevention, trust peer, signaling encryption (SIP-TLS), Stateful Firewall
- Session Control - Dynamic SIP Session allocation for a high number of calls. SessionRouter allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, and much more.
- SIP Normalization - SIP-to-SIP Interworking – Normalizing different vendor-specific SIP implementations or “dialects”. Demarcation point, separation between networks
- Network Monitoring & Assessment - Network monitoring probe* for QoS measurements and proactive alerting to minimize problems. SLA assurance at demarcation point.
- Load Balancing - Call load distribution across multiple network links.
- IP Routing & Networking - IP Routing Protocol support; GRE, VRRP, RIP, L2TP, etc.
- High Availability - Stateful call failover incl. proactive dead call detection. SBC redundancy and failover to secondary, virtual instances.
- Easy Management & Provisioning - Patton Cloud Orchestrated, HTTPS zero-touch provisioning, TR-069, WebWizard, SNMP, command line interface. Automated mass provisioning with dual software image for efficient large-scale deployments.
- Survivability - Access Link Redundancy through USB port, using 3G/4G Cellular Modem module (coming soon)
- Proprietary Software - Utilizes proprietary Trinity™ Software for added security.
|
|
|

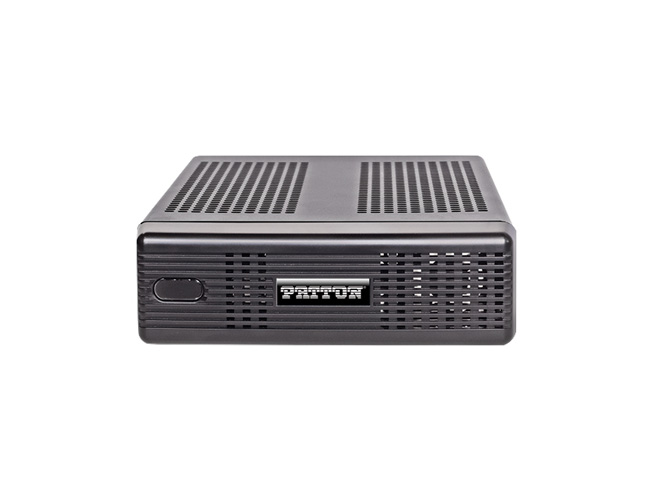

The Patton Model SN5600-4B-EUI with an integrated enterprise router to a SIP trunk or hosted PBX service. The SN5600 supports up to 1,000 SIP to SIP calls.
The SN5600 acts as eSBC, access router, and QoS CPE all in one device. It can also undertake network assessment and monitoring at the customer premise by using Patton Cloud network monitoring to prevent or reduce and resolve network and voice quality problems.
Call Capacity |
Up to 1,000 SIP to SIP calls*** |
Voice Signaling |
- SIPv2 & SIPv2 over TLS
- SIP over IPv4 & IPv6
- SIP call transfer, redirect
- SIP overlap dialing
- DTMF in-band, out-of-band
- G.722
- G.711m/A-law
- G.723.1 (6.4 kbps)
- G.729, 729a, 729ab (8 kbps)
- G.726 (16 ,24, 32, 40 Kbps)
- Transparent Clearchannel (RFC 4040)
- iLBC 13.33k
- AMR-NB (4.75, 5.15, 5.9, 6.7, 7.4, 7.95, 10.2, 12.2 kbps)
|
VoIP Security |
- Network separation
- SIP back-to-back UA
- SIP TLS & SIP message flood prevention
- Open VPN*/IPsec*/L2TP*
- DoS detection & prevention
- Intelligent ACL
- Trusted peer
|
Quality of Service |
- Patton Cloud network monitoring**
- Voice priority, DownStreamQoS™
- Traffic Management, shaping policing
- IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling
|
Connectivity |
- 2 10/100/1000Base-T Ethernet ports
- 1 HDMI port
- 1 VGA port
- 3 USB ports (2 USB 2.0, 1 USB 3.0)
|
IP Networking |
- Routing Protocol support GRE, VRRP, BGP, RIPv1&v2
- Policy, Packet and packet length Based Routing
- IP Multi-Netting, VLAN, Secondary IP
- Network Address and Port translation (NAT/NAPT)
- IPv4 & IPv6 DHCP Client & Server
- Auto-MDIX
- PPPoE Client (multi-session)
- IPv4, IPv6 Dual Stack
- ICMP
- Intelligent ACL, Stateful Firewall
- DNS, DynDNS
- SNTP Client
|
Management |
- Patton Cloud Orchestrated with dynamic resource licensing model (leased/floated)
- Web/HTTPs, CLI with Telnet and SSH access
- WebWizard
- Fully Documented CLI
- Telnet and HTTPs access
- TR-069, TFTP, HTTP, HTTPS configuration up- and download • TR-069, TFTP, HTTP, HTTPS firmware upgrade
- SNMPv1-3 agent
- RADIUS, TACACS+
- Separate config domain (LAN side config and WAN side config)
- MIB II and private MIB
- Built-in diagnostic tools
- Secure auto-provisioning with built-in root CA
|
Power Consumption |
< 10W |
Packaging |
- Metal chassis
- Desktop or wall mountable
- Rackmount option: Roadmap
|
Dimensions |
8.2W x 1.3H x 6.5D in. (20.8W x 3.4H x 16.5D cm) |
Weight |
<450g (15.9 oz) |
Environment |
- Operating temperature: 32 to 104°F (0 to 40°C)
- Operating humidity: up to 90%, non-condensing
|
Safety & Compliance |
- EMC compliance: EN55022 and EN55024
- Safety compliance: EN 60950
- CE compliance
- FCC Part 15 Class A
- RoHS
|
|
Specifications subject to change without notice | * Depending on model | ** Licensed Feature at additional charge | *** Supports up to 1,000 SIP-to-SIP calls under ideal conditions. Transcoding, debugging and/or IP Routing reduce processing capacity. |
|
