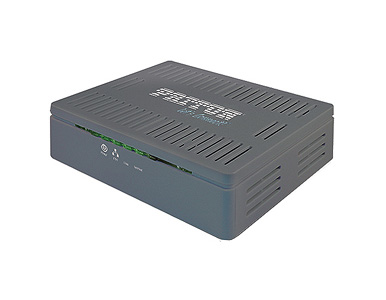

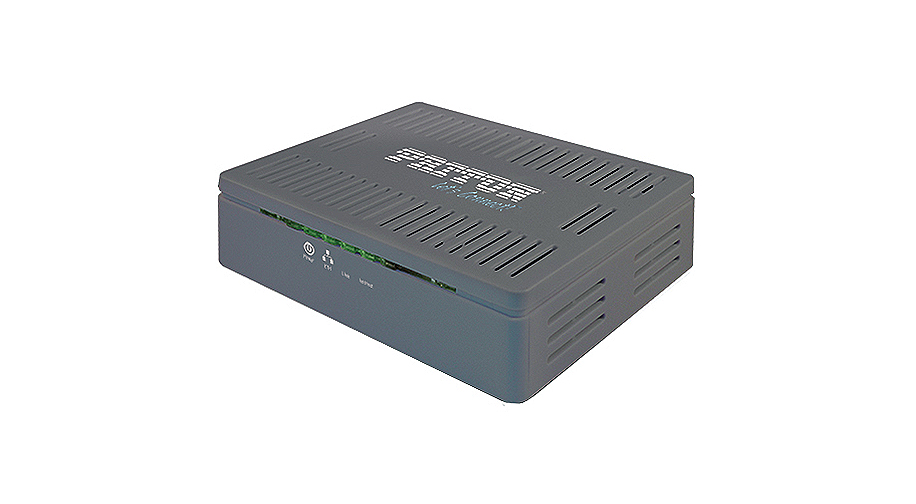

OS3302/4ETH/EUI - OnSite EFM 2-4 Wire IAD; 4 x 10/100; 100-240VAC
by PATTON
|
|
|
|
- Supports 100-Mbps Asymmetrical Line Rate—Provides near fiber performance for bandwidth intensive applications.
- Operates Over Twisted Pair—Reduces the cost and hassles of new installations. Uses installed voice-grade twisted pairs to eliminate the expense of installing network or fiber cable.
- Flexible Deployment —Supports full ADSL2/ADSL2+ or ADSL+ fallback.
- Firewall —Surf the Internet safely and securely.
- Full VDSL2 Profile Support —Support for 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a.
- TR-069 Compliant —Eases management and can reduce hotline costs significantly.
|
|
|
The Patton Model OS3302-4ETH-EUI solutions allow service providers and enterprises to leverage their existing twisted pair for enabling the next generation high speed services and applications. Providing speeds of over 100 Mbps, VDSL2 is the perfect technology for the delivery of high quality triple-play services (IPTV, VoIP, WWW) or for providing high speed data backhaul throughout a campus.
The OS2201 is a small but feature-rich single-port bridge/router that is used for accessing the Internet or private network via a VDSL2/ADSL2+ connection. This connection is delivered by your service provider or, in campus or Multi-Tenant Unit applications, yourprivately owned DSLAM.
The OS2201 is fully compliant with VDSL2 standards—including G.Vector—and supports VDSL2 profiles from 8a to 30a. Because we are standards based, you can count on reliably connecting to Patton’s VDSL2 DSLAM or to a third-party device or service.
This modem may be small, but it packs a punch when it comes to features. The OS2201 supports bridging, static and dynamic routing, IPv4/IPv6, ACLs, TR-069 and a host of firewall/security features that help ensure a safer and more secure Internet experience.
| G.SHDSL (ATM/EFM) |
- Support ITU-T G991.2/G.994.1 standards
- Support ITU-T G.998.1 (G.bond)
- TC-PAM line modulation 16,32,64 & 128
- CO or CPE Mode
- IEEE 802.3 2Base-TL (aka 802.3ah) compliant
- Rate negotiating/manually rate adaptation configuration
- 2–8 wire mode auto detect
- Data rate selections: Up to Nx239 (5.7 Mbps) per pair
- Support bonding based on EFM
- Line interface: up to 4 pairs on a single RJ45 connector
|
| Physical Feature |
- 4 port Fast Ethernet Base-T 10/100 (routable & switchable)
- 1 RJ45 G.SHDSL port for EFM transmission (1, 2 or 4 pair)
- 1 RJ45 RS-232 Console port
- 1 USB 2.0 port (included on OS3301A,OS3302A,OS3304A)
|
| IP Addressing & Routing |
- NAT/NAPT
- DHCPClient/Server/Relay
- DNS Relay/Server/Client
- SNTP Client IPv4/IPv6
- PPPoE
- ICMP
- ARP
- Full Policy Based Routing (PBR) Support
- NAT/NAPT
- Static Routing
- BGP
- RIPv2
|
| Security |
- Stateful Firewall
- Extended ACLs
- Radius Authentication
- SSH/TLS
|
| Switching and Quality of Service |
- IEEE 802.1D
- 802.1Q/802.1P
- Link Scheduling
|
| VoIP Features (Licensed) |
- Call capacity -4 SIP Sessions, license upgradeable up to 250 calls
- SIPv2/SIPv2 over TLS
- Inbound and outbound SIP Registration
- B2BUA Abilities
- SIP Protocol Normalization
- SIP Header Manipulation
- Call-Routing (source, destination, time, date, ...)
- Multiple SIP Trunk support
- Call Hunt- and Ring groups
- Voice priority
- UpStreamQoS™
- Transparent to the RTP payload and all codecs
- No transcoding (use SmartNode 5480 for transcoding)
|
| Management Features |
- SNMP v1, v2, v3
- Telnet/SSH/RS-232
- HTTP/HTTPS/ Provisioning
- SYSLOG
- TACACS +
- TFTP, HTTP & HTTPS file management
- Patton Cloud. restAPI
|
| Temperature |
- 32 to 122 °F (0 to 50°C)
|
| Humidity |
- 5 to 95%, non-condensing
|
| Physical and Power |
- 7.3 x 6.6 x 1.62 inch (185 x 168 x 41 mm)
- 0.4 lbs (181g)
- External PSU AC: 100 to 240 VAC
|
| MTBF |
- Without PoE: 32,852 hours
- With PoE: 28,293 hours (MIL-HDBK-217F; 50C)
|
| Compliance |
|
|
|
