Power |
Dual Power Input |
Both inputs draw power simultaneously. If one power source fails, the other live source can, acting as a backup, supply enough power to meet the operational needs of the switch.
- 54 VDC nominal 50-57 VDC ( PoE+ IEEE 802.3at type 2 )
- 48 VDC nominal 44 to 57 VDC ( PoE IEEE 802.3af or IEEE 802.3at type 1 )
|
Power Connector |
4-Pin Removable Terminal Block.
Grounding screw on metal chassis |
Overload Current Protection |
Fused overload current protection |
Reverse polarity protection |
The positive and negative inputs can be reversed providing safe and simple power connectivity. |
Access Ports |
RJ45 PoE Ports |
8 shielded RJ45 ports for 10/100/1000Base-T up to 100 meters ( 328 ft )
Auto-negotiation
Auto-MDI/MDIX-crossover for use with either crossover over straight-through cable types
Ethernet isolation 1500 V
Amount of available power to PoE ports is dependent upon sufficient voltage and power being supplied to the switch |
RJ45 port ( non-PoE ) |
1 shielded RJ45 ports for 10/100/1000Base-T up to 100 meters ( 328 ft )
Auto-negotiation
Auto-MDI/MDIX-crossover for use with either crossover over straight-through cable types
Ethernet isolation 1500 V |
RJ45 Serial Console port |
RJ45 DTE
Optional rolled and straight thru RJ45 cables and DB adapters are available |
USB Serial Console port |
MicroUSB Type B female port for serial console management. Used as an alternative port for out of band management connections |
Digital Inputs |
Two Digital Inputs are provided that can be used for generation of alarms ( SNMP trap, energizing of on-board Alarm Relay,etc ) |
Alarms |
- NC (Normally Closed ) or NO ( Normally Open ) dry contact.
- 1A @ 24V
|
Removable Storage |
MicroSD slot |
A MicroSD flash card can be inserted for configuration files and firmware backup and restoration |
Alarms |
Alarm Relay |
- NC ( Normally Closed ) dry contact.
- 1A @ 24V
|
Switch Properties |
Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.3at Power Over Ethernet |
Processing Type |
Store and Forward |
MAC Address Table Size |
8K |
VLAN ID range |
1 to 4094 |
IGMP groups |
1024 |
Packet Buffer Memory |
1 Mbit |
Indicators |
Power |
This LED is turned on when the appropriate level of voltage is applied to one or both of the power inputs |
System |
Indicates whether the switch O/S is operating normally |
RJ45 Ethernet |
These integrated colored LEDs indicate link, activity and speed for each port. |
Alarm |
The alarm LED ( Red ) will be turned on under alarm conditions |
P-Ring Master LED |
Status of the P-Ring Master |
Backup Network Coupling |
Indicates whether or not the “Backup Network Coupling” feature is enabled ( Redundant links connecting two P-Ring networks ) |
External Configuration DIP Switches |
RM |
When enabled, designates this switch as the P-Ring Master |
BC |
Activate Backup Coupling between 2 ring networks |
Environmental Specifications |
Operating Temperature Ranges |
Standard temperature models ( Std ): -10° C to 60° C (14° F to 140° F).
XT Industrial extended temperature models ( Ind ) : -40° C to 75° C ( -40 F to 167° F ) |
Storage Temperature Range |
Minimum range of -25° C to 70° C (-13° F to 158° F). -40 C to 85 C (-40 F to 185 F) for industrial extended temperature models |
Operating Humidity Range |
5% to 90% non-condensing |
Storage Humidity Range |
5% to 95% non-condensing |
Operating Altitude |
Up to 3,048 meters (10,000 feet) |
Chassis |
Metal with an IP20 ingress protection rating |
Din Rail Mountable |
DIN Rail attachment included. Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175.
Removable to accommodate optional Panel/Wall mount kit |
Product Weight and Dimensions |
Weight |
1.5 kg |
Dimensions |
75 x 130 x 121mm |
Packaging |
Shipping Weight |
2.0 kg |
Shipping Dimensions |
170 x 260 x 70 mm |
Standards and Certifications |
Safety |
UL 60950-1
IEC 60950-1:2005+A1:2009 and
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
CE Mark
UL 61010-1 and UL 61010-2-201 ( Standard for Safety for Programmable Controllers ) |
Emissions |
FCC 47 Part 15 Class A
CISPR 22:2008/EN55022:2010 (Class A)
CISPR 24:2010/EN 55024:2010 |
EMC and Immunity |
CISPR 24:2010/EN 55024:2010
IEC/EN 61000-4-2 (ESD)
IEC/EN 61000-4-3 (RS)
IEC/EN 61000-4-4 (EFT)
IEC/EN 61000-4-5 (Surge)
IEC/EN 61000-4-6 (CS)
IEC/EN 61000-4-8 (Magnetic Field)
IEC/EN 61000-6-2 ( General Immunity in Industrial Environments ) |
Industrial Safety |
UL 61010-1 and UL 61010-2-201 ( Standard for Safety for Programmable Controllers ). Formerly known as UL508 (Safety standard for Industrial Control Equipment ) |
Hazardous Locations ( Hazloc ) |
ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D ( formerly known as UL 1604 ) *
ATEX Class 1 Zone 2 * |
Environmental |
Reach, RoHS and WEEE Compliant |
Other |
ECCN: 5A992 |
HTSUS Number: 8517.62.0050 |
5 year Warranty |
Contents Shipped |

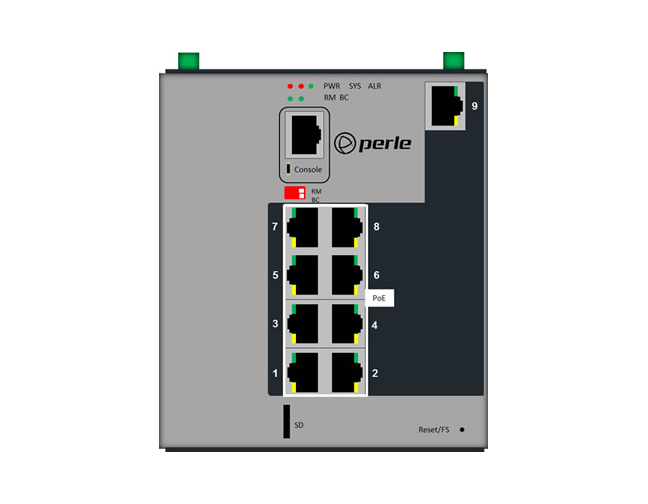

- Industrial Ethernet Switch with DIN Rail attachment
- Terminal block
- Installation guide
|
