| Power |
| Input Supply Voltage |
Triple voltage 12 / 24 / 48 VDC (9.6 – 60 VDC) input supporting:
a) 2 x Terminal Block power input and

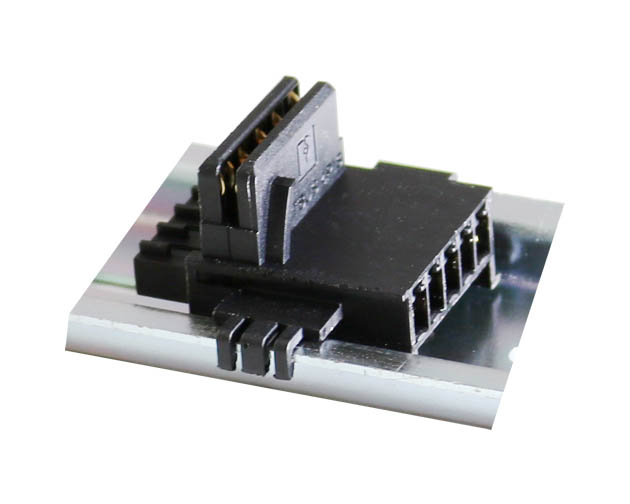

b) 1 x T-Bus power input |
| Current |
0.09 A (@ 24VDC) |
| Power Consumption |
2.16 watts (@ 24VDC) |
| Power Connector |
Dual input Terminal Block and/or T-Bus |
| Indicators |
| Power / TST |
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink fast/slow when in Loopback test mode or hardware error. |
| Fiber link on / Receive activity (LKF) |
On: Fiber link present. Blinking slowly: Fiber link disabled because of copper link loss. Blinking quickly: Fiber link present and receiving data. Off: No fiber link present |
| Link Pass-Through (LKP) |
On: Copper link is present. Blinking slowly: Copper link disabled because of fiber link loss. Blinking quickly: Copper link present and receiving data. Off: No copper link present |
| 10/100/1000 Copper Speed (SP) |
Green: 1000 Mbps, Yellow: 100 Mbps, Off: 10 Mbps |
| Copper Link Activity (LK) |
On: Copper link is present, Blinking quickly: Copper link receiving data |
| Switches - accessible by sliding the chassis open |
 |
| Auto Negotiation |
Auto (Deafault-Up): In this mode of operation the media converter will negotiate Ethernet parameters on both the copper and the fiber connection. This will ensure the most optimal connection parameters will be in effect. If connecting to another Perle Gigabit Media Converter, this parameter should be set to Auto. Off: Copper Negotiation should only be turned off, if the copper link partner does not support copper link negotiations. |
| Smart Link Pass-Through |
Standard Mode (Default-Up): In this mode, with Fiber Negotiation set off, the links on the fiber and copper sides can be brought up and down independently of each other. A loss of link on either the fiber link or copper link can take place without affecting the other connection. However, if the Fiber Negotiation is set to Auto, then a loss of link on the copper side will result in a loss of link on the fiber side but not vice versa.
Smart Link Pass-Through: In this mode, the link state on one connection is directly reflected through the media converter to the other connection. If link is lost on one of the connections, then the other link will be brought down by the media converter. |
| Loopback |
Disabled (Default-Up): The loopback feature is disabled. This is the normal position for regular operation. The switch must be set to this position for data to pass through the media converter.
Enabled: This is a test mode. All data received on the receive (RX) fiber connection is looped back to the transmit (TX) fiber connection. The state of the copper is not relevant and no data or link status is passed through to the copper side. |
| Fiber Fault Alert |
Enabled (Default-Up): In this mode, when Fiber negotiation is turned on, if the media converter detects a loss of fiber signal on the fiber receiver it will immediately disable its fiber transmitter signal. This notifies the fiber link partner that an error condition exists on the fiber connection. If the remote media converter is set up for FFA Enabled and the local media converter is set up with Smart Link Pass-Through, a loss of fiber link on either the transmit or receive line will be passed through to the local copper connection to notify the connected device. If the media converter has been set to Smart Link Pass-Through mode, the effect will be the same as FFA since the link loss on the fiber receiver will result in bringing down the copper link, which will in turn cause the transmit fiber link to be brought down.
Disabled: In this mode, the media converter will not monitor for fiber fault. |
| Duplex Mode |
Auto (Deafault-Up): In this mode, when Fiber Negotiation has been turned off, the media converter will use this Duplex setting for its Ethernet parameter negotiation on the copper connection. In the Auto position, the media converter will advertise support for both Full and Half Duplex mode. The resultant negotiation will provide the most optimum connection.
Half: In this mode, the media converter will force the negotiation to Half Duplex mode |
| Copper Speed |
100 (Default-Up): In this mode, when Auto Neg (copper) is set to off, the media converter will use this switch setting for its Ethernet copper speed connection.The media converter will force the speed to 100 Mbps. 10: The media converter will force the speed to 10 Mbps |
| Cables and Connectors |
| 100Base-TX or 1000Base-T or 10/100/1000Base-T |
RJ45 connector, 2 pair CAT 5 (UTP or STP) or better cable for 10/100 Mbp
RJ45 connector, 4 pair CAT 5 (UTP or STP) or better cable |
| Fixed Fiber or Small Form Factor Pluggable ( SFP ) slot |
Dual multimode or single mode ( Duplex ) fiber - SC, ST
Single strand fiber ( Simplex ) – SC |
| Magnetic Isolation |
1.5kv |
| Fiber Optic Cable |
Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron
Single Mode: 9/125 micron (ITu-T 625) |
| Filtering |
| Filtering |
1026 MAC Addresses |
| Frame Specifications |
| Buffer |
1000 Kbits frame buffer memory |
| Size |
Maximum frame size of 10,240 bytes -- Gigabit
Maximum frame size of 2048 bytes -- Fast Ethernet |
| Packet Transmission Characteristics |
| Bit Error Rate (BER) |
<10 -12 |
| Environmental Specifications |
| Operating Temperature |
-40 C to 75 C (-40 F to 167 F) |
| Storage Temperature |
-40 C to 85 C (-40 F to 185 F) |
| Operating Humidity |
5% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| Operating Altitude |
Up to 3,048 meters (10,000 feet) |
Heat Output
( BTU/HR ) |
7.37 |
| MTBF (Hours) |
577,432 (Calculation model based on MIL-HDBK-217-FN2 @ 30 °C) |
| Chassis |
Molded plastic DIN Rail case with an IP20 ingress protection rating |
| Mounting |
| Din Rail Kit |
Native |
| Product Weight and Dimensions |
| Weight |
0.12 kg, 0.26 lbs |
| Dimensions |
116 x 100 x 22.5mm, 4.5 x 3.9 x 0.88 inches |
| Packaging |
| Shipping Weight |
0.17 kg, 0.37 lbs |
| Shipping Dimensions |
145 x 105 x 30 mm, 5.7 x 4.1 x 1.2 inches |
| Regulatory Approvals |
| Substation & Hazloc |
IEC 61850-3
IEEE1613
EN 61000-4-16
ATEX Class 1 Zone 2
ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D |
| Emissions |
FCC 47 Part 15 Class A, EN55032 (CISPR32) Class A
ICES-003
EN61000-6-4 (Emissions for industrial environments)
CISPR 32:2015/EN 55032:2015 (Class A)
CISPR 24:2010/EN 55024:2010
EN61000-3-2 |
| Immunity |
EN55026
EN 61000-4-2 (ESD)
EN 61000-4-3 (RS)
EN 61000-4-4 (EFT)
EN 61000-4-5 (Surge)
EN 61000-4-6 (CS)
EN 61000-4-8 (PFMF)
EN 61000-4-11
IEC/EN 61000-6-2 (General Immunity for Industrial Environments) |
| Electrical Safety |
UL 61010-1 and UL 61010-2-201 (including CB)
UL/ULC/EN 62368-1 (including CB)
CAN/CSA C22.2 No. 62368-1-14 |
| CE |
| Laser Safety |
EN 60825-1:2007 |
| Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11. |
| Environmental |
Reach, RoHS and WEEE Compliant |
| Other |
ECCN: 5A991 |
| HTSUS Number: 8517.62.0050 |
