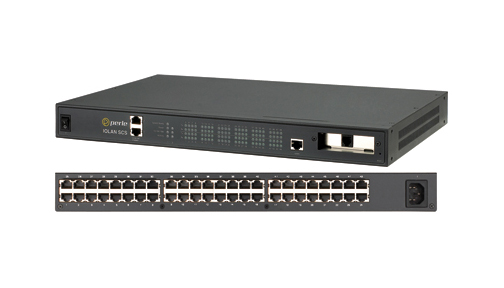

SCS48 |
| Processor |
MPC8349E, 400 Mhz, 750 MIPS |
| Memory |
| RAM MB |
128 |
| Flash MB |
16 |
| Interface Ports |
| Number of Serial Ports |
48 |
| Serial Port Interfase |
RS232 DTE on RJ45 |
| Sun / Solaris |
Sun / Oracle ‘Solaris' Safe - no "break signal" sent during
power cycle causing costly server re-boots or downtime |
| Serial Port Speeds |
50bps to 230Kbps with customizable baud rate support |
| Data Bits |
5,6,7,8, 9-bit protocol support |
| Parity |
Odd, Even, Mark, Space, None |
| Flow Control |
Hardware, Software, Both, None |
| Serial Port Protection |
15Kv Electrostatic Discharge Protection ( ESD ) |
| Local Console Port |
RS232 on RJ45 with DB9 adapter ( provided ) |
| Network |
Dual 10/100/1000-base TX Ethernet RJ45 |
| Software selectable Ethernet speed 10/100/1000, Auto |
| Software selectable Half/Full/Auto duplex |
| Ethernet Isolation |
1.5Kv Magnetic Isolation |
| Integrated Modem |
Optional V.92 modem card available with RJ11 jack |
| Integrated Wireless |
Optional USB Adapter Card for integration of 3rd party wireless USB Modem Sticks (3G)
Optional PC Adapter Card for integration of 3rd party wireless PCMCIA cellular cards (GSM/GPRS/3G) |
| Fiber Support |
Perle supports 3rd party Gigabit Fiber Cards via the standard PCI Interface Slot. Alternatively, connect a Perle Standalone Media Converter to the IOLAN SCS Ethernet port for Fiber to Ethernet conversion. |
| Power |
SCS48 |
| Redundant Power |
|
| Power Supply |
USA model |
IEC320-C13 to NEMA 5-15P line cord |
| Nominal Input Voltage |
110/230v AC |
| Input Voltage Range |
100-240v AC |
| AC Input Frequency |
47-63Hz |
| Current Consumption @ 100v ( Amps ) |
0.20 |
| Current Consumption @ 240v ( Amps ) |
0.08 |
| Typical Power Consumption ( Watts ) |
20 |
| Power Line Protection |
Fast transients: 1 KV (EN61000-4-4 Criteria B) |
Surge: 2KV (EN61000-4-5 common mode), 1KV (EN61000-4-5 differential
and common modes) |
| Indicators |
| LEDs |
Power |
| System Ready |
| Network Link activity |
| Serial: Transmit and Receive data per port |
| Environmental Specifications |
Heat Output
( BTU/HR )36 |
69 |
| MTBF ( Hours )* |
115980 |
| Operating Temperature |
0C to 55C, 32F to 131F |
| Storage Temperature |
-40C to 85C, -40F to 185F |
| Humidity |
5 to 95% (non condensing) for both storage and operation. |
| Case |
SECC Zinc plated sheet metal (1 mm) |
| Ingress Protection Rating |
IP30 |
| Mounting |
1U - 19" rack, front and rear mounting hardware included |
| Product Weight and Dimensions |
| Weight |
3.5 kg |
| Dimensions |
1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in) |
| Packaging |
| Shipping Dimensions |
59 x 36 x 9cm |
| Shipping Weight |
4.5 kg |
| Regulatory Approvals |
| Emissions |
FCC Part 15, Subpart B, Class A |
| CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A |
| ICES-003, Issue 4, February 2004 (Canada) |
| EN55022:1998 + A1:2000 + A2:2003 Class A |
| EN61000-3-2 : 1995, Limits for Harmonic Current Emissions |
| EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker |
| Immunity |
EN55024:1998 + A1:2001 + A2:2003 |
| EN61000-4-2: Electrostatic Discharge |
| EN61000-4-3: RF Electromagnetic Field Modulated |
| EN61000-4-4: Fast Transients |
| EN61000-4-5: Surge |
| EN61000-4-6: RF Continuous Conducted |
| EN61000-4-8: Power-Frequency Magnetic Field |
| EN61000-4-11: Voltage Dips and Voltage Interruptions |
| Safety |
IEC 60950-1 : 2005 (2nd Edition) + A1 : 2009 and
EN 60950-1 : 2006 + A11 : 2009 |
CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1,
First Edition April 1st 2003 (Recognized Component) |
| Other |
Reach, RoHS and WEEE Compliant |
| CCATS - G052929 |
| ECCN - 5A992A |
| HTSUS Number: 8471.80.1000 |
| Perle Limited Lifetime warranty |
|
IOLAN DTE
RJ45 Socket |
| IOLAN RJ45 Socket |
Function |
Direction |
| 1 |
DCD |
 |
| 2 |
RTS |
 |
| 3 |
DSR |
|
| 4 |
TXD |
|
| 5 |
RXD |
|
| 6 |
GND |
 |
| 7 |
CTS |
|
| 8 |
DTR |
|
( A rolled RJ45 cable will automatically perform DTE to DCE crossover )
|
