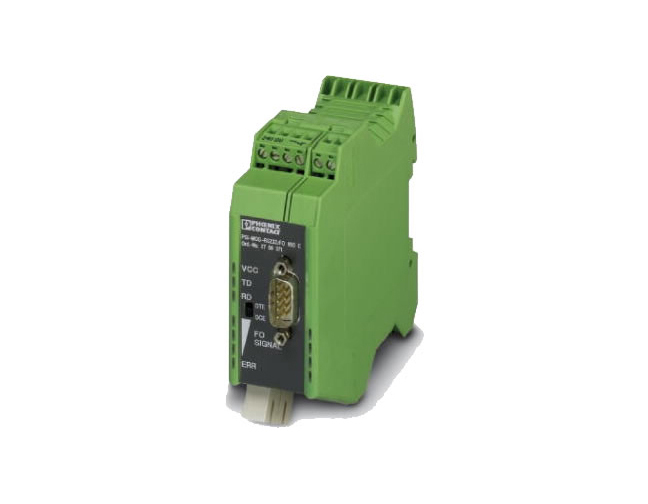

Ambient conditions |
Ambient temperature (operation) |
-20 °C ... 60 °C |
Ambient temperature (storage/transport) |
-40 °C ... 85 °C |
Permissible humidity (operation) |
30 % ... 95 % (non-condensing) |
Altitude |
5000 m (For restrictions see manufacturer's declaration) |
Degree of protection |
IP20 |
Noise immunity |
EN 61000-6-2:2005 |
Standards and Regulations |
Electromagnetic compatibility |
Conformance with EMC directive 89/336/EC |
Type of test |
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
Test result |
5g, 10-150 Hz, 2.5 h, in XYZ direction |
Type of test |
Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
Test result |
15g, 11 ms period, half-sine shock pulse |
Shock |
15g in all directions in acc. with IEC 60068-2-27 |
Noise emission |
EN 55011 |
Noise immunity |
EN 61000-6-2:2005 |
Free from substances that could impair the application of coating |
according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard |
Connection in acc. with standard |
CUL |
Standards/regulations |
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6 |
Vibration (operation) |
In acc. with IEC 60068-2-6: 5g, 150 Hz |
Conformance |
CE-compliant |
ATEX |
II 3 G Ex nA nC IIC T4 Gc X |
UL, USA/Canada |
508 listed
508 recognized |
Optical interface FO |
Number of FO ports |
1 |
Wavelength |
1300 nm |
Transmission length incl. 3 dB system reserve |
27 km (With F-G 50/125 0.7 dB/km at 1300 nm)
22 km (with F-G 62.5/125 0.8 dB/km at 1300 nm)
45 km (With F-E 9/125 0,4 dB/km at 1300 nm) |
Transmission medium |
Multi-mode fiberglass
Single-mode fiberglass |
Transmission protocol |
Transparent to protocol for RS-232 interface |
Connection method |
SC duplex |
General |
Transmission channels |
2 (1/1), RxD, TxD, full duplex |
Bit distortion, input |
± 35 % (permitted) |
Bit distortion, output |
< 6.25 % |
Electrical isolation |
VCC // V.24 (RS-232) |
Test voltage data interface/power supply |
1.5 kVrms (50 Hz, 1 min.) |
Electromagnetic compatibility |
Conformance with EMC directive 89/336/EC |
Noise emission |
EN 55011 |
Net weight |
183.78 g |
Housing material |
PA 6.6-FR |
Color |
green |
MTBF |
549 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
113 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
Conformance |
CE-compliant |
ATEX |
II 3 G Ex nA nC IIC T4 Gc X (Please follow the special installation instructions in the documentation!) |
UL, USA/Canada |
508 listed
508 recognized |
Digital outputs |
Output name |
Relay output |
Output description |
Alarm output |
Number of outputs |
1 |
Maximum switching voltage |
60 V DC
42 V AC |
Limiting continuous current |
1:00 AM |
Power supply |
Nominal supply voltage |
24 V DC (With UL approval) |
Supply voltage range |
18 V DC ... 32 V DC |
Typical current consumption |
100 mA (24 V DC) |
Connection method |
COMBICON plug-in screw terminal block |
Serial interface |
Interface 1 |
V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1 |
Connection method |
D-SUB 9 plug |
Transmission medium |
Copper |
Transmission length |
≤ 15 m |
Conductor cross section solid min. |
0.2 mm² |
Conductor cross section solid max. |
2.5 mm² |
Conductor cross section flexible min. |
0.2 mm² |
Conductor cross section flexible max. |
2.5 mm² |
Conductor cross section AWG min. |
24 |
Conductor cross section AWG max. |
14 |
Serial transmission speed |
115.2 kbps (NRZ) |
Dimensions |
Width |
35 mm |
Height |
99 mm |
Depth |
105 mm |
|
Environmental Product Compliance |
China RoHS |
Environmentally Friendly Use Period = 50 |
Reach and RoHS Compliant |
Reach and RoHS Compliant |
Approvals |
|
cUL Listed
cULus Listed
UL Listed
ATEX
EAC
DNV
cUL Recognized
cULus Recognized
UL Recognized |
Commercial data |
Packing unit |
1 |
Weight per piece |
222.7 g |
Country of origin |
Germany |
