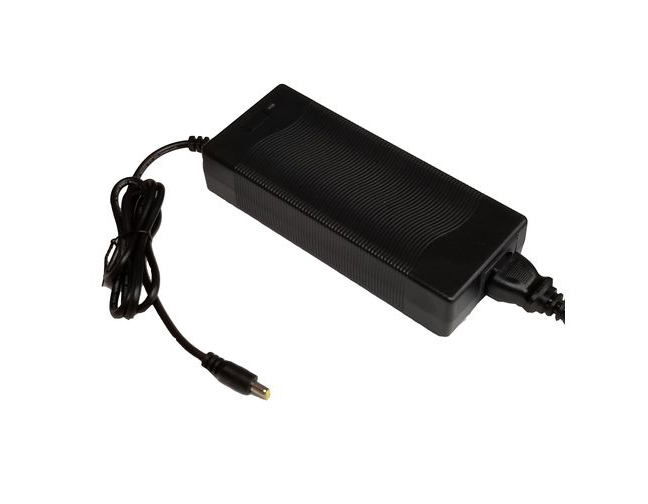

TP-BC12-120 - 12VDC 8.3A 120W Battery Charger, 120/240VAC in, 2 wire output
by Tycon Systems
|
|
|
|
- 120W Total Power. 12V models.
- Small Form Factor, Low Cost
- Over-Voltage, Over-Current, Over-Temp, OverLoad, Short-Circuit Protections
- Led indicator: Red=Charging, Green=Battery Full
- Wide temperature operation
- CE, UL and FCC Certifications
|
|
|
The TP-BC12-120 battery chargers provide up to 120W of total charging power. The battery charger is compatible with GEL/AGM type sealed lead acid batteries. The charger has various protections for short-circuit, over-load, over-voltage, over-current and over-temp. It operates over a wide temperature range. There is an LED which indicates charging (Red) or battery full (Green). The unit comes with a removeable AC cord with a North American Plug. The units are auto-ranging so they can work from 100VAC to 240VAC.
Total Power Available (for
Load and Battery charging) |
120W |
Nominal Battery Voltage |
12VDC |
Battery Charge Max Current |
8.3A |
Battery Charger Voltage |
14.4V |
Load Regulation |
5% |
Line Regulation |
3% |
Efficiency |
85% Minimum |
Output Connector |
2 Wire; 914mm (36”) long cable |
EMC Standards |
FCC Class B, NE55022 Class B |
Safety Standards |
UL60950-1, CSA 22.2, TUV EN60950 |
AC Power Input (+-10%) |
120VAC/ 240VAC, 50/60 Hz |
AC Input Current |
2.5A Max |
HiPot Test |
3000 VAC |
Insulation Resistance |
50 MOhm, 500VDC |
Operating Temperature |
-30 to +55C (22 to +131°F) |
Operating Humidity (RH) |
Up to 90% (non condensing)
|
Storage Temperature |
-40 to +85°C (-40 to +185°F)
|
Storage Humidity |
Up to 90% (non-condensing)
|
MTBF (Mean Time Between Failure) |
>50,000 hrs |
Dimensions (LxWxH) |
172 x 72.5 x 34.5mm ( 6.8 x 2.9 x 1.4”) |
Weight |
439g (15.5oz)
|
|
|
