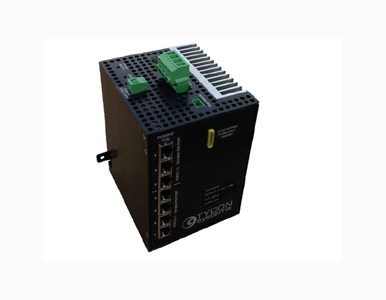

TPDIN-SC48-20 - Solar 48V 20A MPPT Battery Charging Controller, 7 Port Gigabit PoE Switch, Remote Management by Tycon Systems

TPDIN-SC48-20 - Solar 48V 20A MPPT Battery Charging Controller, 7 Port Gigabit PoE Switch, Remote Management
by Tycon Systems
Write a review Write a review
  • MPPT 48V 20A Solar Controller
  • Temperature Compensated Smart Battery Charging
  • 7 Port Gigabit Passive PoE Switch
  • Remote Monitor and Control
  • 48V or 24V User Selectable Output Voltage
  • 2.25A Auxiliary Wire Terminal Output
  • Total 200W Power Output
  • Automatic Low Voltage Battery Disconnect
  • DIN Rail or Screw Tab Mounting



Mfg SKU # : TPDIN-SC48-20
List Price : $679.95
Our Price : $667.00
Stock : 1267
Quantity :

The TPDIN-SC48-20 is a web manageable MPPT Solar Controller with built-in 7 Port Gigabit Passive PoE switch. The controller uses temperature compensated smart battery charging to properly charge GEL or AGM batteries and extend their life. It has a balance charge mode for periodic battery bank maintenance. There are 3 Gigabit Passive PoE+ 35W and 4 Gigabit Passive PoE 18W ports. There is a wire terminal auxiliary output capable of 2.25A maximum. Total from all outputs is set at 150W at 48VDC and 72W at 24VDC for a max total of 222W. Outputs can be switched by user between 48VDC and 24VDC or OFF through the web interface.

The web interface has full capabilities to measure and log battery voltage, battery current, input current, load current and battery temperature. Ports can be controlled by a settable ping watchdog to power cycle the port if communications to the unit are interrupted. Auxiliary port can be controlled by voltage or temperature or time so it can be programmed to control lights, pumps, generators, heaters, fans, etc. The unit supports automated Email alerts if user programmed limits are exceeded so that the user can be alerted in case of developing problems at the site.

The TPDIN-SC48-20 can also be powered through an external AC to DC power supply in order to charge the batteries from an AC source like grid power or generator. The solar input of the controller always takes priority so if the sun is shining the external DC input isn’t used.

All inputs and outputs are surge and overload protected. Connectors and battery fuse are removable for easy maintenance.

The TPDIN-SC48-20 can be mounted using the integral DIN rail mount bracket or using 2 mounting tabs.



TPDIN-SC48-20

Solar Input Voltage

62VDC to 80VDC

Solar Input Current

20A Maximum

Battery Voltage

48VDC  (Controller will function to 12VDC)

Battery Current

20A Maximum

Battery Type

GEL or AGM

Fuse Type

58V 20A Fast Blo Automotive Blade Type  (Littlefuse 142.6185.5206)

Low Voltage Disconnect

45.8V to 47.8 – settable in web interface

Low Voltage Disconnect Recovery

48.1V to 49.2V – settable in web interface



External DC Power Input Voltage

62VDC to 80VDC

External DC Power Input Current

Internally regulated to 3A. Power source must be >= 3A

External DC Power Input Connector

4 pin Mini DIN – Mating connector CUI Inc. Model PDP-40

Auxiliary DC Output Voltage

24VDC or 48VDC – settable in web interface

Auxiliary DC Output Current

2.25A Maximum

Auxiliary DC Output Controls

Temperature, Voltage, Time – settable in web interface

PoE Switch

Qty 7 RJ45, 10/100/1000MB Gigabit Ethernet, Layer 2, Auto Crossover

PoE Output Voltage

48VDC or 24VDC or OFF – settable in web interface

PoE Output Power

Port 1-3  35W Passive PoE+ at 48VDC, 18W at 24VDC

Ports 4-7 17W Passive PoE at 48VDC, 9W at 24VDC

PoE Power supplied on pins 4,5 (V+) and 7,8 (V-) (Mode B)

Port Surge Protection

IEC 61000-4-2 (ESD) 15kV (air), 15kV (contact)

IEC 61000-4-4 (EFT) 40A (5/50ns)

IEC 61000-4-5 (Lightning) 25A (8/20µs)

Maximum Power Output

222W Total (150W @ 48VDC and 72W @ 24VDC) from all output ports (including Aux Output), Auto Shutdown and Autorecovery from Fail

Indicator LED’s

Charge (Green), 24VDC (Green) or 48VDC (Yellow) Port Voltage, External DC Power is ON (Green), Overload (Red)

Measurement Accuracy (V / I / T)

+/- 0.1V ,  +/- 0.1A , +/- 1 Deg C

Power Consumption

3.5W Typ

Accessibility

Via Web Browser and SNMP

Data-Logger

FIFO,  15,000 data sets, Programmable log interval

Wire Size

Solar and Battery – 8AWG,  Aux DC Output -12AWG

Mounting

DIN Rail or 4mm Screw Tab

Operating Temperature

-40C to +65C (-40F to 149F)

Humidity (RH)

0% - 90%

Dimensions (LxWxDepth)

151mm x 111mm x 138mm (5.9 x 4.4 x 5.4”)

MTBF

>100,000 Hrs

Certifications

FCC/CE  EN55022 (EMC) ; CE EN55024 (EMC);  CE/UL EN60950-1 (LVD)
