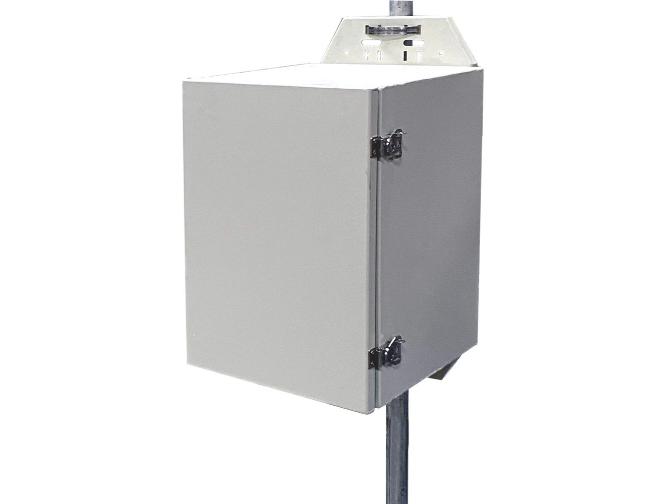

The UPL12-24-100L-600UPSPro® outdoor enclosures are designed for applications that require a backup power
source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is
also solar ready (blocking diodes may be required), so a solar panel can be added as an alternate power source
or to extend backup time. Features include an advanced MPPT solar battery charge controller with LCD display to
provide system information, LVD load control and solar charging capability. The LFP (LiFePO4) Lithium batteries
have an embedded BMS (Battery Management System) to maintain proper charging of the Lithium batteries to achieve
4000+ cycle life at 80% discharge. Expected battery life is 10+ years. Enclosures have multiple ports for CAT5
cable, antenna cables/connectors or other cabling.
There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE
cards, sensors, etc. Equipment runs on battery power which isolates it from power line surges which is a main
cause of outdoor equipment failure.
Multiple configurations are available for 12V or 24V systems with various battery storage capacities.
A typical PTZ camera with average power consumption of 20W will run 24 hours on a 50Ah battery.
