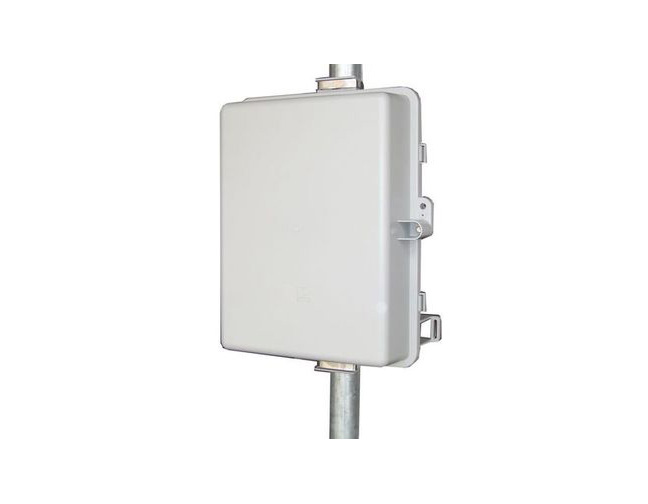

UPS-PL2424HP-9 - UPS Pro 60W 200VA, Polycarbonate Enclosure, 24V 9Ah Solar Ready by Tycon Systems

UPS-PL2424HP-9 - UPS Pro 60W 200VA, Polycarbonate Enclosure, 24V 9Ah Solar Ready
by Tycon Systems

Write a review Write a review
  • Weatherproof, UV resistant , outdoor enclosures
  • Powered over CAT5 cable using POE and/or Solar
  • Generous interior space for customer electronics
  • Wall or Pole Mounting
  • Isolates Customer Equipment from Power Line Surges
  • High Quality AGM VR Sealed Lead Acid Batteries
  • Advanced b attery charge controller protects against overcharge and over discharge



Mfg SKU # : UPS-PL2424HP-9
List Price : $299.95
Our Price : $294.00
Stock :28
Quantity :

The UPSPro™ series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered over a CAT5 network cable using Power Over Ethernet (PoE) with a high power PoE Supply/Inserter (included). Inside, the system has a RJ45 connector as DATA/PoE input and an RJ45 connector as a DATA/PoE output which gets connected to the customers POE device. There is also a regulated 24VDC output on a wire terminal connection. Each output is capable of 30W max for a total of 60W. The integrated controllers are Solar Ready and can be used with an external 24VDC solar panel up to 280W in addition to grid power supplied via PoE.

Customer electronics operate from battery power so they are isolated from damaging power line surges. The batteries are continuously charged via the PoE input and/or solar power. The solar power takes precedence over grid power when available.

Features include a battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

There is a generous amount of space reserved inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc.

POE Output Voltages Available (DC) 24V and 48V
Available Capacities (Amp Hours) 9Ah, 18Ah
Total Output Power 60W
Maximum POE Input Voltage 57V
Battery Voltage (DC) 24V
Battery Type Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
Battery Life 5 Years
Controller Type Dual Input Solar/POE, PWM, 24V 8A Max Solar Panel Size 270W
Overcharge Protection 28.6V
Over -discharge protection 22.0V
Over - discharge recovery voltage 24.0V
Controller Self Consumption <0.5W
Charging PO E Power Supply 120/220VAC In ; 48VDC 60W Out
Enclosure Type Polycarbonate
Enclosure External Size 17.5 x 12.5 x 6” (445 x 318 x 152mm)
Enclosure Internal Size 14 x 10 x 5” (356 x 254 x 127mm)
Space available for Customer Electronics 3 x 5 x 3 ” ( 76 x 1 2 7 x 76 mm)
Operating Temperature - 30°C to +60°C ( - 22°F to 140°F)
System Weight (without batteries) 4l b (1.8kg)
Battery Weight (each) 5.5lb (2.5kg)
