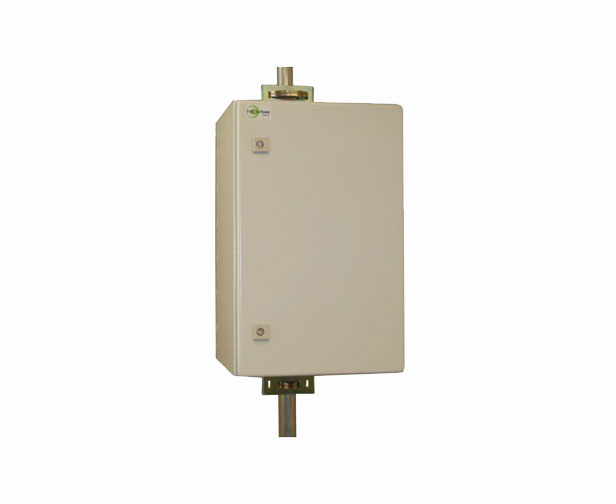

UPS-ST24-50-120 - UPSPro 100W 1200VA, 24VDC 20A Unregulated Output, 120/240VAC Input, Steel Encl, 24V 50Ah AGM Battery. Solar Re by Tycon Systems

UPS-ST24-50-120 - UPSPro 100W 1200VA, 24VDC 20A Unregulated Output, 120/240VAC Input, Steel Encl, 24V 50Ah AGM Battery. Solar Re
by Tycon Systems

Write a review Write a review
  • Weatherproof, UV resistant, outdoor enclosures
  • Powered from AC mains power and/or Solar
  • Interior space for customer electronics
  • Wall or Pole Mounting
  • Isolates Customer Equipment from Power Line Surges
  • High Quality AGM Sealed Lead Acid Batteries
  • Advanced battery charge controller protects against overcharge and over discharge


Mfg SKU # : UPS-ST24-50-120
List Price : $769.95
Our Price : $755.00
Stock :215
Quantity :

The UPS-ST24-50-120 outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready so a solar panel can be added as an alternate power source or to extend backup time. Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.

Multiple configurations are available for 12V or 24V systems with various battery storage capacities.

A typical 250mW wireless access point with average power consumption of 4W will run 24 hours on a 9Ah battery at room temperature or 16 hours at -20 deg C.


  • Wireless Base Stations and Clients
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Remote Sensors
  • Mission critical outdoor power
  • Backup Power Systems

Battery Voltage (DC)


Input Voltage (AC)

120/240VAC, 50/60Hz, 2.5A Max

Capacities (Amp Hr) @ 12V

50Ah (1 battery)

Avail Storage Capacity (Watt Hr)

600Wh, 1200Wh

Max Output Power


Suggested Maximum Load


Maximum Instantaneous Load

20A 500msec

Battery Type

Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)

Battery Life

5 Years

Controller Type

20A PWM Solar Controller with Status Display and Load on/off switch Max Solar Panel Size 160W

Controller Display Status

Battery Voltage, Charging Current, Load Current, Temperature

Overcharge Protection

14.4V / 28.8V

Over-discharge protection

11V / 22V

Over-discharge recovery voltage

12.3V / 24.6V

Controller Self Consumption


Enclosure Type

Powder Coated Steel

Enclosure External Size

24 x 15 x 14" (610 x 381 x 356mm)

Enclosure Internal Size

23 x 14 x 12" (584 x 356 x 305mm)

Operating Temperature

-30°C to +60°C (-22°F to 140°F)

System Weight (Without batteries)

55lb (25kg)

Battery Weight (each)

37lb (17kg)


Individual components used have CE Certifications. Batteries have CE and UL.
