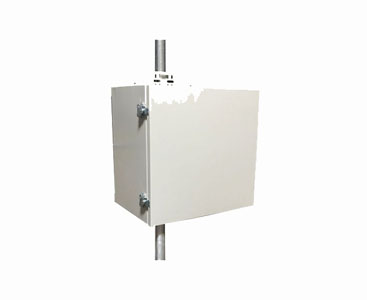

Tycon Systems UPS-STL48-50-600 - UPSPro 600W 2400VA, 12/24/48V 20A Unreg Output, 120/240VAC Input, Large Steel Encl, 12/24/48V 4
by TYCON SYSTEMS
|
|
|
|
- Configurable as 12V, 24V or 48VDC System
- Weatherproof, UV resistant, outdoor enclosures
- Powered from AC mains power and/or Solar
- Interior space for customer electronics
- Wall or Pole Mounting
- Isolates Customer Equipment from Power Line Surges
- High-Quality AGM Sealed Lead Acid Batteries
- Advanced battery charge controller protects against overcharge and over discharge
| Mfg SKU # : | UPS-STL48-50-600 |
|
|
|
The UPS-STL48-50-600 outdoor enclosures are designed for applications that require a flexible backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready so a solar panel can be added as an alternate power source or to extend backup time. Features include 12V/24V/48VDC configurable output, an advanced 60A MPPT battery charge controller to protect against overcharging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent a residual buildup of hydrogen gas.
There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There is a 1U rack mount feature in the enclosure for rack mounting. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.
A typical high power wireless access point with average power consumption of 8W will run 40 hours on a 52Ah battery at room temperature or 28 hours at -20 deg C.
Applications
- Wireless Base Stations and Clients
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Remote Sensors
- Mission critical outdoor power
- Backup Power Systems
Battery Voltage (DC) |
12V / 24V /48V |
Input Voltage (AC) |
120/240VAC, 50/60Hz, 5A Max |
Capacities (Amp Hr) @ 12V |
12V 200Ah, 24V 100Ah, 48V 50Ah |
Avail Storage Capacity (Watt Hr) |
4800Wh |
Max Output Power |
600W |
Suggested Maximum Load |
450W |
Maximum Instantaneous Load |
20A 500msec |
Battery Type |
Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
Battery Life |
5 Years |
Battery Cable Fuse |
6 x 32mm Ceramic 30A 250V |
Controller Type |
60A MPPT Solar Controller with Status Display and 20A Load with on/off switch |
Maximum Solar Panel Size |
800W @12V Battery, 1600W @ 24V Battery, 3200W @ 48V Battery |
Controller Display Status |
Battery Voltage, Charging Voltage, Charging Current, Load Current, Temperature |
Overcharge Protection |
14.4V @ 12V Battery, 28.8V @ 24V Battery, 57.6V @ 48V Battery |
Over-discharge protection |
11V @ 12V Battery, 22V @ 24V Battery, 44V @ 48V Battery |
Over-discharge recovery voltage |
12.6V @ 12V Battery, 25.2V @ 24V Battery, 50.4 @ 48V Battery |
Controller Self Consumption |
<1.2W |
Enclosure Type |
Powder Coated Steel – Pole/Wall Mount |
Enclosure External Size |
24.1 x 24.1 x 17.5" (612.5 x 612.5 x 445.6mm) |
Enclosure Internal Size |
23.9 x 23.9 x 16.1" (608 x 608 x 409.5mm) |
Operating Temperature |
-30°C to +60°C (-22°F to 140°F) |
System Weight (Without batteries) |
75lb (34kg) |
Battery Weight (each) |
4 x 37lb (17kg) |
Certifications |
Individual components used have CE Certifications. Batteries have CE and UL. |
|
|
|
|
