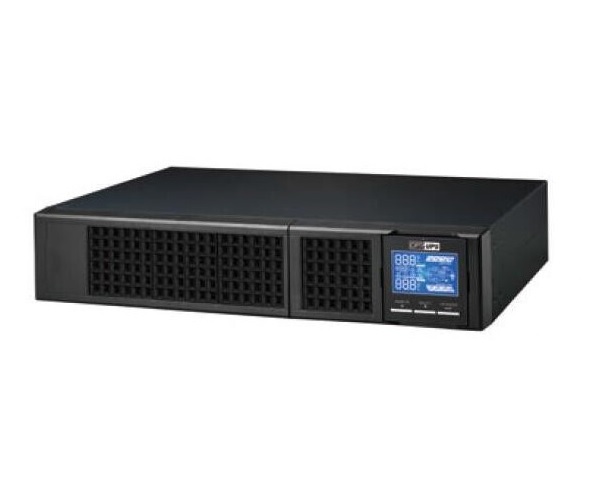

Opti-UPS DS1000E-RM - 1000W 1000VA Durable Series 6-Outlet On-Line Uninterruptible Power Supply
by OPTI-UPS

DS-E Series is the high performance sine wave on-line UPS, specially designed for the network computer and mini-intellectual instrument (for example: testing equipment / industrial automatic instrument etc), nicety apparatus of such systems like finance / communication / insurance / railway / medical treatment / mine / enterprise etc which is particular suitable for bad electric environment An Online UPS is not a further improvement of the standby technology, but a completely different approach to providing the highest level of power supply. A double-conversion refers to converting the incoming AC power into DC power, and inverting it back to AC power. This ensures the newly reproduced power to be of a quality standard set by UPS, to be completely cleared of all imperfections of the power coming from the AC mains. Regardless of what is going on the AC mains side, the UPS output voltage, frequency and signal purity are kept up to the highest standards. The current flow is absolutely uninterruptible, the transfer time is zero. The UPS can work in pair with diesel generator, and can accommodate additional battery cabinets for a longer backup time.

Model Name		DS1000E	DS2000E	DS3000E
Topology		True On-Line Double Conversion
On-battery Output Waveform		Pure Sine Wave
Maximum Capacity		1000VA / 1000W	2000VA / 2000W	3000VA / 3000W
INPUT
Nominal Voltage		220 / 230 / 240Vac; 110 / 115 / 120 / 127Vac
Nominal Frequency		40Hz - 70Hz
Nominal Voltage Range		160-300Vac(220/230/240Vac) ; 80-150vAC(110/115/120/127Vac)
Harmonic Distortion (THDi)		=  5%
OUTPUT
Nominal voltage		220 / 230 / 240Vac:110 / 115 / 120 / 127Vac
Voltage Regulation(Battery mode)		± 1 %
Transfer Time(Typical)	AC to DC	0ms
	Inverter to Bypass	4ms
	ECO to Battery Mode	8-10ms
Frequency Range (Sychronized Range)		47-50Hz or 57-63Hz
Frequency Range (Battery mode)		50Hz ± 0.1% or 60Hz ± 0.1%
Crest Ratio		3:1
Harmonic Distortion		=  2% THD(Linear Load), =  4% THD(Non-Linear Load)
Start on Battery		Yes
Auto Restart		Yes
Max. Efficiency	AC mode	89%	91%
	Battery mode	88%	90%
	ECO mode	96%
Number of Outlets(Battery backup)	2x0V	4 (IEC 10A)	8 (IEC 10A)	8 (IEC 10A)+  1 (IEC 16A)
	1x0V	6 (NEMA 15A)	8 (NEMA 5-15)	8 (NEMA 5-15)
PROTECTION
Data Line Surge Protection		RJ11/RJ45
Overload Capability		105%~130%:shutdown after 10s, 150%:shutdown after 5s
Over Current Protection		Circuit Breaker
Discharge Protection		Keylock
BATTERY
Configuration		24V(12V9Ah x 2)	48V(12V9Ah x 4)	72V(12V9Ah x 6)
Max. Efficiency		88%	90%
Recharge Time to 90%(Typical)		<3 Hours @ 2A charging current
INDICATOR & ALARM
Display		LCD (Rectifier/Bypass/Inverter/Battery)
Alarm		Battery mode / UPS faults / Overload
INTERFACE
Communication port		RS232 and USB
SNMP Manageable		Yes
ENVIRONMENTAL
Operation Temperature		0~45°C
Noise		Less than 50dBA @ 1 METER
Relative Humidity		0~95% Non condensing
MECHANICAL
Dimension (WxDxH)	mm	145x397x220mm	190x421x318mm
	inch	5.7x15.6x8.7in	7.5x16.6x12.5in
Weight	kg	11.7Kg	20.3Kg	28Kg
	lbs	25.8lb	44.8lb	61.8lb
