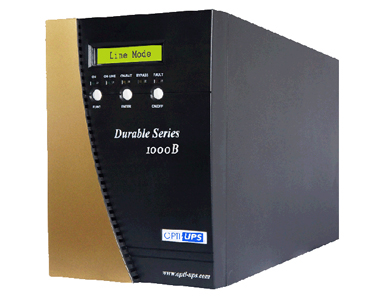

DS1500B - 1050W 1500VA Durable Series 6-Outlet On-Line Uninterruptible Power Supply
by OPTI-UPS

An Online UPS DS1500B is not a further improvement of the standby technology, but a completely different approach to providing the highest level of power supply. A double-conversion refers to converting the incoming AC power into DC power, and inverting it back to AC power. This ensures the newly reproduced power to be of a quality standard set by UPS, to be completely cleared of all imperfections of the power coming from the AC mains. Regardless of what is going on the AC mains side, the UPS output voltage, frequency and signal purity are kept up to the highest standards. The current flow is absolutely uninterruptible, the transfer time is zero. The UPS can work in pair with diesel generator, and can accommodate additional battery cabinets for a longer backup time.

Beside those, the Durable Series UPS DS1500B offers a set of essential features that make these UPS a flexible power supply control and power saving tool.

By now the Durable Series UPS DS1500B perfectly serves their purpose in numerous data processing, medical, banking and other mission critical centres around the globe.

Model Name		DS1500B
Topology		True On-Line, Double Conversion, High Frequency
On-battery Output Waveform		Pure Sine Wave
Maximum Capacity		1500VA / 1050W
INPUT
Nominal Input Voltage		100 / 110 / 120Vac or 220 / 230 / 240Vac
Nominal Input Frequency		50Hz / 60Hz Auto Sensing
Input Voltage Range		80-144Vac (100 / 110 / 120Vac) or 160-276Vac (220 / 230 / 240Vac)
OUTPUT
Nominal Output Voltage		100 / 110 / 120 / 127Vac or 220 / 230 / 240Vac (selectable)
Output Voltage Regulation		Rated Voltage ±2% (on battery)
Transfer Time (Typical)		0 ms
Start on Battery		Yes
Auto Restart		Yes
Number of Outlets		6 Battery backup (NEMA 15A)
		4 Battery backup (IEC 10A)
PROTECTION
Data Line Surge Protection		RJ11 / RJ45
Surge Energy Rating		125 Joules (100 / 110 / 120Vac) or 280 Joules (220 / 230 / 240Vac)
Overload Protection		UPS shuts down at 110% load after 10 secs or 130% load after 1.5 secs
Over Current Protection		Circuit Breaker
Discharge Protection		Keylock
BATTERY
Configuration		36V (12V 34W×3)
Backup Time (Full / Half load)		5 / 15 min
Recharge Time to 90% (Typical)		< 4 Hours
Extended Battery Pack (Optional)*		BP1500
		12V 34W×6
ADVANCED WARNINGS / DIAGNOSTICS
Front Panel		AC mode / On line / On battery / Bypass / Fault / Overload and 15 UPS Status
Audible Alarms		Battery mode / UPS faults / Overload
COMMUNICATION INTERFACE
Communication Port		RS232 and USB#
SNMP Manageable		Yes
ENVIRONMENTAL
Operation Temperature		0~40°C / 32~104°F
Storage Temperature		-20~60°C / -4~140°F
Relative Humidity		0~95% Non condensing
Audible Noise		<40dBA
PHYSICAL
Dimensions Physical / Packing (L×W×H )	in	16.5×6×9.4 / 21.5×11×14
	mm	420×152×238 / 545×280×355
Weight (Net / Gross)	lbs	37.7 / 41.9
	kg	17.1 / 19
Battery Pack Physical / Packing (L×W×H )	in	16.5×6×9.4 / 21.5×11×14
	mm	420×152×238 / 545×280×355
Battery Pack (Net / Gross)	lbs	46.7 / 50
	kg	21.1 / 22.6
CONFORMANCE
Approvals		UL / cUL, CE, GOST-R
