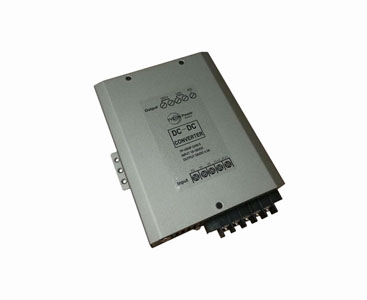

TP-VRHP-2456-250 - Voltage Converter 18-36VDC Input, 56VDC @ 4.46A 250W Regulated output.isolated
by Tycon Systems
|
|
|
|
- High Output, Short Circuit Protected
- Metal Enclosure, DIN rail mounting
- Industrial Temperature Operation
- Most Models Isolated Input to Output
- Low Voltage Disconnect
|
|
|
The TP-VRHP-2456-250 of DC to DC converters offer high output voltage conversion in a compact metal enclosure. They have wire terminal inputs and outputs for maximum flexibility. The units come with DIN rail adapters for DIN rail mounting. They provide power output up to 250W.
DC Input Voltage Range |
+/- 18 to 36VDC |
DC Voltage Output |
56VDC @ 4.46A |
Maximum Power |
250W |
Input/ Output Isolation |
Isolated |
Efficiency |
>83% |
Load/ Line Reg |
5% / 1% |
Ripple/ Noise |
2% / 5% |
Isolation |
1500VDC Min. / 100M Ohms Min |
Wire Gauge |
12AWG Max |
Protections |
Short Circuit, Overvoltage, Overload |
Operating Temp |
-22°F to 149°F (-30°C to +65°C) |
Operating Humidity |
0 to 90% RH |
Size |
5.9 x 7.4 x 1.7” (150x187x43.6mm) |
Weight |
2.6lbs (1.2 kg) |
|
|
