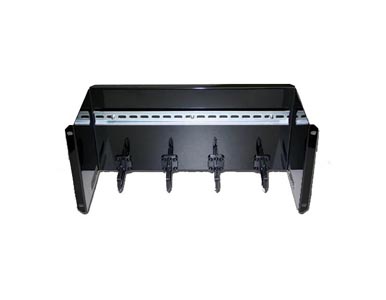

BRKT-19DR-5U-CM is a DINSpace 19-inch Rackmount DIN-Rail Adapter with cable management, 5U.
SNAP 19-inch rackmount DIN-Rail adapter brackets allow you to mount standard 35mm DIN-Rail devices within your 19-inch rack or cabinet. Constructed of heavy-duty powder-coated 16-gauge steel, the adapter brackets each support up to 50 pounds of weight. Available in two configurations, the 5U version features a built-in cable management system to help keep your cables organized, while the slender 4U design allows you to optimize your cabinet storage capacity.
| Scope of Delivery |
- BRKT-19DR-5U-CM: Rackmount adapter, 4ea. pre-mounted cable management guides
|
| Materials of Construction |
- Body: 16-gauge powder-coat painted steel
- DIN-Rail: Steel
- Optional Cable Management: Thermoplastic
|
| Specifications |
- Ambient Conditions
- Storage/Operating temperature: -40 deg. C to 80 deg. C
- Rack Dimensions
- BRKT-19DR-5U-CM: (H x D x W) 8.65″ x 6.75″ x 19″
- Mounting: 19″ rackmount via four mounting holes
- Weight: 5lbs.
- Protection class: IP20
|
