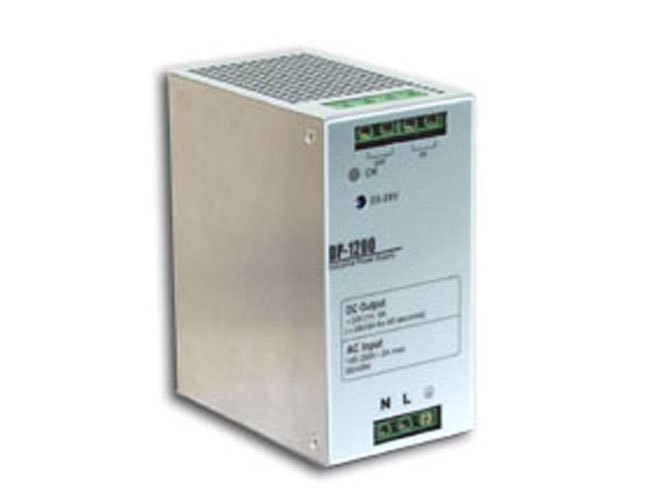

DP-1200 - Din Rail Mounted, 24V/5A Power Supply, 120W
by ICP DAS

24V / 5A 120W Power Supply with dimensions of 65mm x 125mm x 103mm

24V/5A power supply

Outputs:

Efficiency : 90% typical at 230Vac
Hold up time : longer than 20ms at 115Vac
Over voltage protection : latch off
Over load protection : auto recovery
Short circuit protection : auto recovery
Cooling : free air convection
EMI standard : FCC docket 20780 curve "B"
EN55022 "B", EN61000-3-2 class D
Safety :
- UL 1950
- UL 508 CSA 22.2
- No. 950-M90 EN 60 950
Power on indicator : Green light on the panel
Connectors:
- AC & DC Connector :
- Terminal blocks (suitable wire 26 ~10AWG)
Hook : For standard symmetrical 35mm DIN-rail
Din Rail Mount
General Environment
- Operating temperature : -10°C to +70°C
  - (derating: typ. 3W/K > 60°C)
- Storage temperature : -25°C to +85°C
Dimension : 65 x 125 x 103 (mm)

NOTE:

Each output can provide up to max. load separately when the power supply starts up. To exceed the max. output power continuously is not allowed.
At factory,in 60% rated load condition,each output is checked to be within voltage accuracy.
Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
Load regulation is defined by changing ±40% of measured output load from 60%rated load at another output set to 60% rated load.
Ripple & noise is measured by using 15MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line.
Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line.
Efficiency is measured at rated load and nominal line.

40 K
