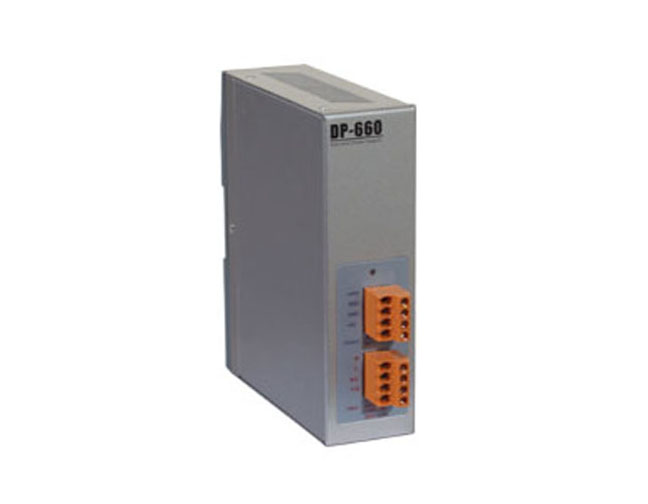

ICP DAS DP-660 - Din Rail Mounted, 24V/1.7A, 5V/0.5A Power Supply, 65W
by ICP DAS

DP-660 is a 65 watt, universal input switching mode power supply.

It is with 24V @ 2.5A & 5V @ 0.5A output options. DP-660 is intended for a powere device like a motor or solenoid application. The built in +5V 3T-regulator for DP-660 is for if there is a logical control circuit.

• Input voltage : 85VAC to 270VAC
• Input frequency : 47Hz to 63Hz
• Inrush current (Cold start) :
  less than 30A at 115Vac
  less than 60A at 230Vac
• DC Outputs :
  • +24V/2.5A
  • +5V/0.5A
• Efficiency : higher than 70% at rated load and 115Vac
• Holdup time : 16ms at rated load and 115Vac
• Over voltage protection : hiccup mode
• Short circuit protection : latch off
• Over voltage protection : latch off
• Environment:
  • Operating temperature : 0 to 50°C
  • Cooling : free air convection
  • Storage temperature : -40°C to 85°C
• Din Rail Mount
