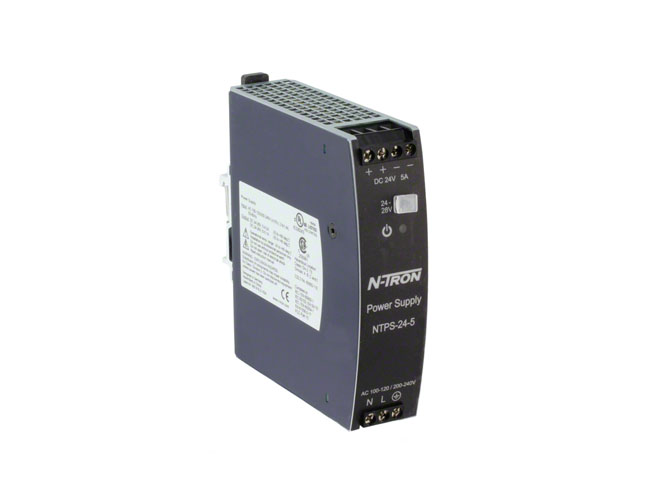

Advantech NTPS-24-5 - "Discontinued" - DIN PWR SUPPLY,5.0A@24DC
by Advantech

The Dimension C-Series are cost optimized power supplies without compromising quality, reliability and performance. The C-Series is part of the Dimension power supply family, existing alongside the high featured Q-series. The C series includes all the essential basic functions and the devices have a power reserve of 20%. This extra current may even be used continuously at temperatures up to +45°C. The most important features are the small size, the high efficiency and the wide temperature range. The Auto-select input makes worldwide installation and usage very simple. Defects or system failures caused by wrongly set switches can not occur.

Output voltage Adjustment range	DC 24V 24-28V
Output current	5-4.3A 6-5,1A	ambient < 60°C ambient < 45°C
Output power	120W 144W	ambient < 60°C ambient < 45°C
Output ripple	<50mVpp	20Hz to 20MHz
Input voltage   Mains frequency AC Input current Power factor AC Inrush current	AC 100-120 / 200-240V 50-60Hz typ. 2.05 / 1.23A typ. 0.56 / 0.47 typ. 3A peak	Auto-select Input   ±6% at 120 / 230Vac at 120 / 230Vac
DC Input	not allowed
Efficiency Losses	typ. 89.4 / 90.2% typ. 14.5 / 13.2W	at 120 / 230Vac at 120 / 230Vac
Temperature range Derating	-25°C to +70°C 3W/°C	Operational +60 to +70°C
Hold-up time	typ. 80 / 78ms	at 120 / 230Vac
Dimensions	32x124x117mm	WxHxD
