TP3000WC - ProWeatherStation Professional Wireless WiFi Solar Weather Center with Software
by Tycon Systems
|
|
|
|
- No Assembly Required – Easy setup
- 48 sec data update, instantaneous average and peak
- Inside and Outside Temperature and Humidity
- Solar Insolation and UV Index Measurement
- Wind Speed and Direction Including Average and Gust
- Wind Chill and Dew Point Temperature Display
- Barometric Pressure with last 12hr history, Weather Forecast
- Rain Gauge with Last Hour, Day, Week, Month or Total
- Built-in Data Logging for 4080 Readings: Unlimited with PC
- Settable Alarms and Resettable Min/Max History
- User Programmable Calibration Factors
- Up to 330 Ft (100m) Wireless Range Between Transmitter and Base Station
- Solar Powered Transmitter with 2 AA Batteries for backup.
- Free WeatherSmart WiFi Windows Software
|
|
|
The ProWeatherStation™, TP3000WC, is a high performance wireless data logging weather station with advanced sensor technology resulting in good accuracy at a low cost. It provides instantaneous and historical data on Inside and Outside Temperature and Humidity, Wind Speed (average and gust), Wind Direction, Solar Intensity and UV Index, Barometric Pressure and Rainfall. The backlit base station logs 4080 data points with adjustable sample interval. There is a memory meter on the display that shows when the memory is getting full so the data can be downloaded and archived to a computer thru WiFi and the included WeatherSmart WiFi software. The base station also allows automatic upload of data to Weather Underground and Weather Cloud via WiFi with no PC necessary.
The unit has an internet clock for improved accuracy. The Base Station runs on 3 AA Alkaline or Lithium batteries and can be mounted up to 100m (330 feet) away from the transmitter/sensor array. To use the WiFi feature, the Base Station must be powered with the included 5V power adapter. The transmitter/sensor array is solar powered and requires 2 AA batteries (included) for backup power.

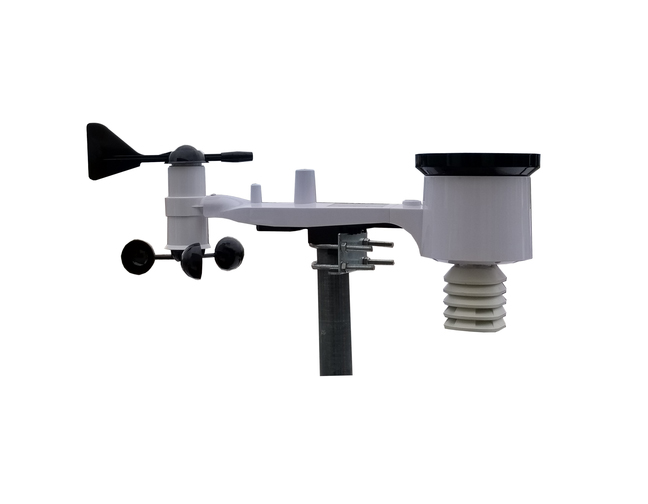

The ProWeatherStation™ comes with an advanced solar powered sensor array (anemometer, wind direction meter, temp/humidity sensor, rain gauge, solar/light sensor), Ubolt brackets for mounting to a 1-1.6” pole, WiFi enabled wireless base station/display, 5V AC/DC adapter, and WeatherSmart WiFi Windows software. Note: 3 AA alkaline or Lithium batteries for the base station backup power are not included.
Display Ranges |
Wind Speed |
0-112 MPH (0-50m/s)
Accuracy: +/- 1m/s (<10 m/s) +/- 10% (>10 m/s)
Displays in mph, m/s, km/h, knots or Beaufort |
Outdoor Temperature |
-40 to 65°C (-40 to 149°F) 0.1 °C resolution
Displays in °C or °F Accuracy: +/-1°C
|
Indoor Temperature |
0 to 50°C (32 to 122°F) 0.1 °C resolution
Displays in °C or °F Accuracy: +/-1°C
|
Humidity |
1% to 99% (1% resolution) Basic Accuracy: +/-10% @25C
30-80% Accuracy: +/-5% @25C |
Rain Gauge |
0-9999mm (394 inches) 0.1mm resolution (<1000mm)
1.0mm (>1000mm) Accuracy: +/- 10%
Displays in mm or inches (hour,day,week,month or total)
|
Barometric Pressure |
8.85 to 32.5 inHg 0.01inHg resolution
Within range 27.13 to 31.89 inHg Accuracy: +/-3 hpa
Displays in inHG or hPa
|
Wind Direction |
LCD Compass 22.5° resolution |
Light Measurement |
0-300,000 lux |
Wireless Transmitter/ Sensor Array |
Operating Frequency |
433 MHz |
Update Interval |
48 secs
|
Operating Distance |
Up to 100 meters (300 feet) between transmitter and base
station |
Wind Survivability |
200 km/h (125 mph) |
Construction |
UV resistant white thermoplastic |
Power Source |
Solar Powered, AA Batteries (included) for backup
|
Mounting |
Top of Pole (1-1.6” dia) mount using 2 stainless u-bolts |
Base Station Specs |
Setup |
Base Station or Computer (WiFi setup via smartphone app –
WSTOOLS)
|
Display |
Backlit LCD, White Colored Frame |
Memory Capacity |
4080 data samples (memory meter on display)
|
Computer Interface |
WiFi |
Included Software |
WeatherSmart WiFi Windows software
|
Batteries |
3 type AA LR6 Alkaline (not included) gives 1 year battery
life. To extend battery life, Base Station can also be powered
via 5V AC adapter (included).
|
Dimensions (LxWxH) |
177 x 152 x 50mm (7” x 6” x 2”) |
Mounting |
Wall or desktop |
General Specs |
Settable Alarms |
Temp, Humidity, Wind Chill, DewPoint, Rainfall, Wind Speed,
Wind Gust, Barometric Pressure, Light, UV Index, Heat Index |
Alarm duration |
Up to 120 seconds |
Time Setting |
Automatic thru Internet, Perpetual Calendar |
Time Display |
12hr or 24hr |
Shipping Weight |
2.3kg (5lbs) |
System Ordering |
TP3000WC Data Logging Wireless Solar WiFi Weather
Station |
|
|
