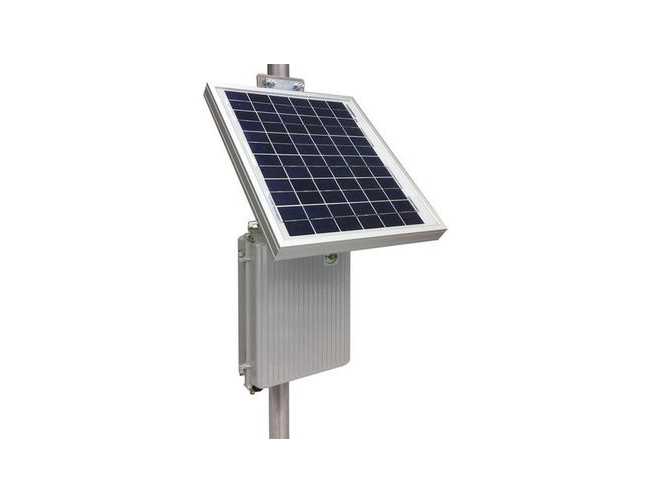

Tycon Systems RPDC12-9-05 - *Discontinued* -  RemotePro 1.25W Continuous Remote Power System, 5W integrated Solar Panel, Die Cas by TYCON SYSTEMS

Tycon Systems RPDC12-9-05 - *Discontinued* - RemotePro 1.25W Continuous Remote Power System, 5W integrated Solar Panel, Die Cas
by TYCON SYSTEMS

Write a review Write a review
  • Complete Remote Power Solution for Off-Grid operati on
  • Weatherproof, UV resistant, outdoor enclosures
  • Enclosures can be Wall or Pole Mounted
  • High Performance Valve Regulated Sealed Lead Acid B atteries
  • Advanced battery charge controller protects against overcharge and over discharge



The RemotePro™ series outdoor power systems are designed for applications that require a primary off-grid power source to run various electronics. The sealed and weatherproof enclosures have extra space inside and a removable mounting plate for mounting customer electronics.

The polycarbonate enclosures are hinged and gasket sealed and can be mounted to a wall or pole with the included mounting bracket system.

The high quality solar panels have a 25year power output guarantee. The solar panels come with a side of pole mount for 2" to 4" diameter poles.

Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. The controllers have a 12V 20A (unregulated) wire terminal output.

Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

Batteries are an Advance Glass Matt (AGM) type which have good all temperature performance.

Rated Power Generation 1.25W
Reserve Time @ Rated Power 40hrs
POE Output Voltage (DC) No POE Out
Secondary Volts Out (DC) 12V 20A
Battery Capacity (Amp Hrs) 9Ah
Battery Voltage (DC) 12V
Battery Type Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
Battery Life 5 Years
Controller Type PWM
Overcharge Protection 14.4V
Over-discharge protection 11.0V
Over-discharge recovery volts 12.0V
Controller Self Consumption <0.5W
Enclosure Type Die Cast Aluminu
Enclosure External Size 11 x 8.5 x 3.5” (279x216x89mm)
Enclosure Internal Size 10 x 7.75 x 3” (254x197x76mm)
Space available for Customer Electronics 7.75 x 5 x 1.25” (197x127x32mm)
Solar Panel Dims 11” X 9”
Operating Temperature -30°C to +60°C (-22°F to 140°F)
System Weight (no batteries) 10lb (4.5kg)
Battery Weight 5.5lb (2.5kg)
Wind Speed Rating 110MPH
Warranty 2 Years
