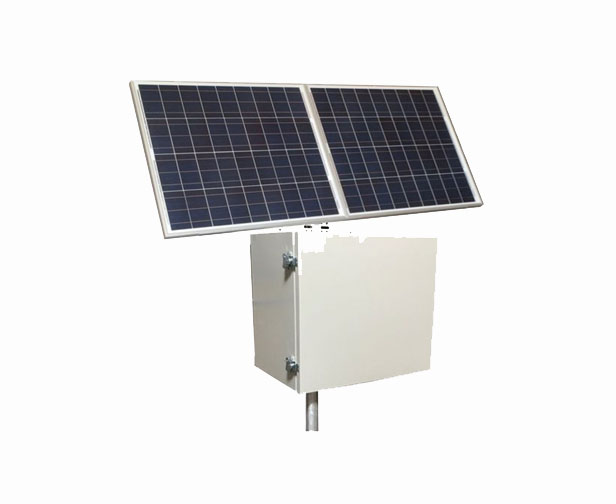

The RPSTL24M-100-160 outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. A 19” 1U rackmount feature is integral to the enclosure as are multiple DIN Rail mounts.
All enclosures are hinged and gasket sealed with locking latches for security. The latches can be locked using a standard customer supplied padlock.
The enclosures can be mounted to a wall or pole with the included mounting bracket system. Poles up to 11” diameter can be accommodated.
The high quality solar panels have a 25year power output guarantee. The 160/320W panel can be mounted to a pole or wall with the included side-of-pole mounting system. The 650W and 1300W panel systems come with a top-of-pole mount which includes the pole and concrete anchors for anchoring the flanged pole to a foundation.
The systems feature a state-of-the-art, temp compensated, MPPT charge controller with voltage and current monitoring. The outputs support up to 20A - unregulated. Enclosures have three cable gland ports for CAT5 cable, antenna cables/connectors or other cabling. The enclosures include a thermostatically controlled fan which turns on automatically when the temperature exceeds 45°C.
Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.
The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.
