Tycon RPMS24-800L-Skid - MobileSolarPro Skid, 150W, 12/24/56V OUT, 720W Solar, 800Ah Lit Battery, 9600Wh,Telescope Mast, 5 Port
by TYCON SYSTEMS
|
|
|
|
- Complete Mobile Solar Remote Power Solution for off-grid operation. Fully assembled, sets up in minutes.
- Weatherproof outdoor locking enclosure with high-performance sealed lead acid battery and thermostatically controlled ventilation.
- 720W solar capacity – supports up to 160W continuous power with 6 hours peak sun.
- MPPT temperature-compensated solar charge controller: 60A solar, 30A load, 99% efficiency.
- Pneumatic four-position (9ft, 12ft, 15ft, 18ft) locking aluminum extension mast for up to 110lb load. Raises fully in about 90 seconds using the integrated air pump.
|
|
|
Tycon RPMS24-800L-Skid

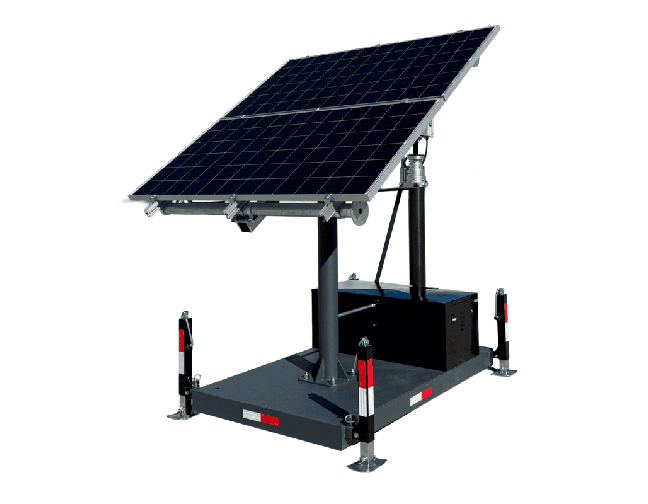

The MobileSolarPro® Skid-Series delivers a fully assembled, portable solar power system ideal for off-grid use. With up to 720 W solar capacity and a heavy-duty, adjustable 360° tilt/rotation mount, you get robust and reliable power even in remote locations. The system supports up to 160 W continuous power with 6 hours of peak sunlight, and includes a temperature-compensated MPPT solar charge controller (60 A solar / 30 A load) for efficient energy conversion. Built into a weatherproof, locking enclosure, the Skid system is offered with either sealed lead-acid or wide-temperature LiFePO4 battery options. The battery banks deliver dependable energy storage and support long term deployments, while ventilation and rugged construction ensure the system withstands harsh environmental conditions. For added flexibility and ease of integration, each unit features remote monitoring and control, with tracking of solar input, battery status, load draw, temperature, and the ability to automate load or generator activation. Outputs include regulated 12 VDC, 24 VDC and 56 VDC, plus a 5-port PoE Layer 2 switch — perfect for powering cameras, sensors, radios, or network devices directly from the solar system. Whether deployed for temporary lighting, security, remote surveillance, agricultural monitoring, or off-grid communications, the MobileSolarPro® Skid-Series offers a rugged, flexible, and turnkey solar solution — ready to power critical equipment with minimal setup and maximum reliability.
Specifications
- Battery type: LFP
- Solar panel output: 720W
- Solar Array size: 79 x 77"
- Battery capacity: 800 Ah
- Continuous power generation: 160W
- Reserve time: 30 hr
- Grid charge time: 7 hr
|
|
|
|
