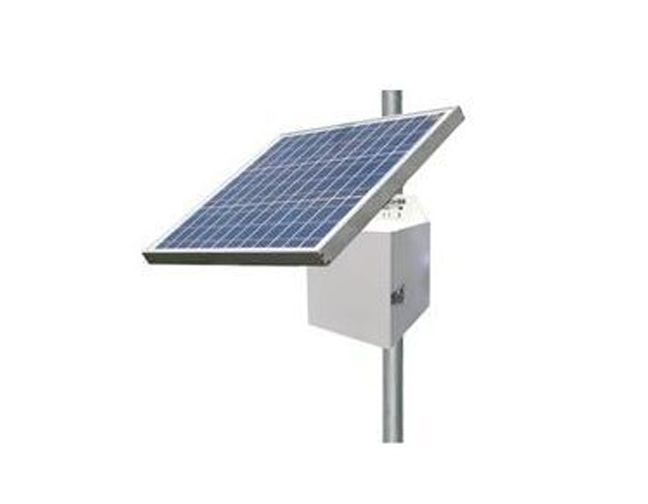

Tycon RPL12M-100L-100 - RemotePro 21.5W Cont Pwr Solar Sys, 100W Solar, 12V 100Ah 1200Wh LFP Lithium Batt, 12V 30A MPPT Sol Ctrl
by TYCON SYSTEMS

Tycon RPL12M-100L-100

The RemotePro® 100W Lithium Series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof aluminum enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates. The enclosures can be mounted to a wall or pole with the included mounting bracket system. The high quality solar panels have a 25year power output guarantee. The solar panels can be mounted to a 51mm to 101mm (2" to 4") diameter pole or alternately to a wall with the included bracket kit. Features include advanced PWM or MPPT battery charge controllers with LVD load control. Batteries are a Wide Temp LFP (LiFePO4) Lithium type which have superb 80% deep discharge and 4000+ cycle life performance. The batteries have an embedded BMS (Battery Management System) to enable 10+ year battery life. The aluminum enclosures are hinged and gasket sealed with a locking closure that accepts a common padlock for security. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C. The systems come with all cabling required to connect the batteries to the controller and 6’ outdoor rated cable to connect the solar panels to the controller.

Specifications

• Continuous power generation: 21.5
• Reserve time: 48 hours
• Enclosure type: Large AL
• Battery voltage: 12 VDC
• Battery Capacity: 100 Ah
• Solar panel size: 100W
