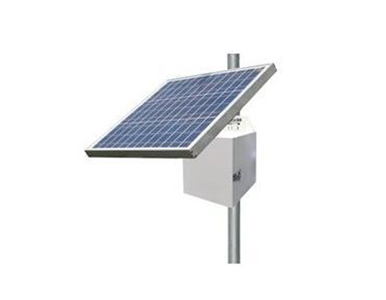

Tycon RPS12AT-100-100
The RemotePro® 100W Series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof aluminum enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates. The advanced PWM solar controller provides the battery charging function, 24V or 48V 30W Passive or PoE+ output and a 12V 1.5A or 10A auxiliary output. The solar controllers turn off the load automatically if the battery voltage drops too low in order to preserve battery life. The load turns on automatically once the battery voltage recovers. The enclosures are hinged and gasket sealed with a locking closure that accepts a common padlock for security. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C. The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4”) with the included mounting system. Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Absorbed Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years. The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.
