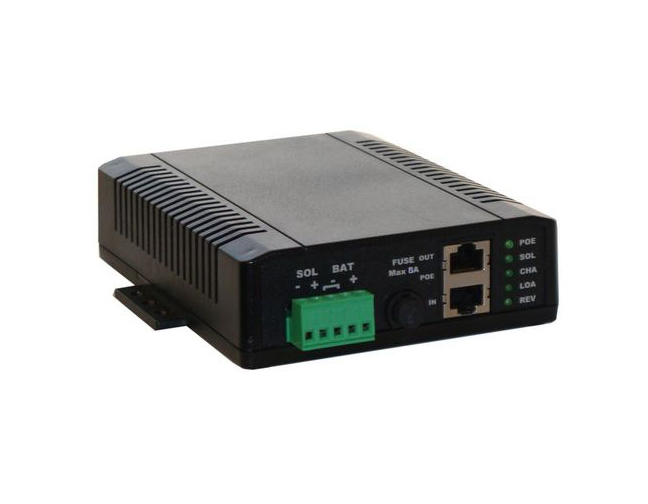

Tycon Power Systems PoE/Solar charge controllers, TP-SCPOE-2424-HP, have dual inputs to charge batteries from a PoE source and also a secondary source like solar panels in order to provide redundancy and insure 100% uptime for critical applications.
The solar input can handle up to 8A. The PoE input up to 2.6A. They have a built in PoE inserter that delivers 24V 1A at the PoE out port. They also have a secondary wire terminal 24V 1.5A output. They have full electronic protections for short circuit, reverse current, overvoltage, overcharge and over discharge.
The built-in overdischarge protection and low self consumption ensures the battery is not overdischarged, which greatly increases the life of the batteries.
They have five LED indicators to give a quick visual status if current is being supplied by a PoE source or solar panel, if battery is charging, If load output is turned on and a warning if battery is connected with reverse polarity.
Solar and Battery Connections are via 4 wire terminals for wire size up to 12AWG. PoE Input and Output is via 2 RJ45 shielded connectors.
The controllers are externally fused with a standard replaceable fuse.
