Tycon TPS-12-100W - 12V 100W Mono Solar Panel w/ 25 Yr Output Warranty, Excellent Low Light Performance, High Transparency Low I by TYCON SYSTEMS

Tycon TPS-12-100W - 12V 100W Mono Solar Panel w/ 25 Yr Output Warranty, Excellent Low Light Performance, High Transparency Low I
by TYCON SYSTEMS

Write a review Write a review
  • Excellent Low Light Performance
  • Extremely Reliable. 5 Year Product Warranty. 25 year Solar Cell Output Warranty.
  • High Efficiency with High Transparency Low Iron Tempered Glass Cover. Rugged Extruded Anodized Aluminum Frame
  • Sealed for Protection from Harsh Environments
  • 36” Output Cables with PV Solar Connectors for Easy Connections
Mfg SKU # : TPS-12-100W
Our Price : $147.95
Stock : Call for Availability
Quantity :

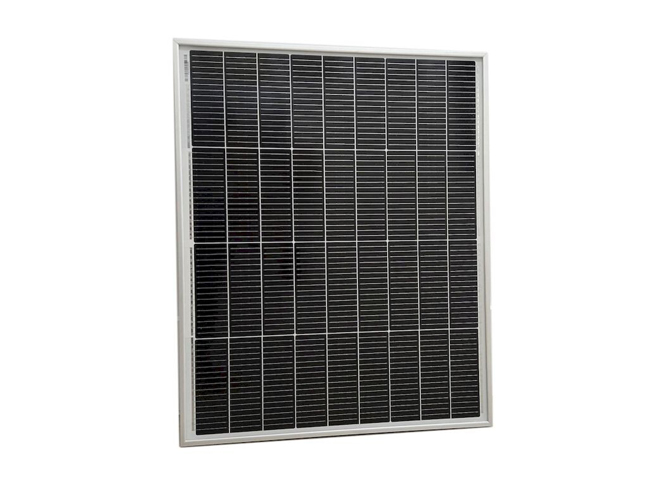

Tycon TPS-12-100W

The TPS-12-100W utilizes advanced MBB half-cell technology, delivering more uniform current collection and significantly reducing internal heat loss for improved reliability and efficiency. Its 36 1/3-cell monocrystalline N-type design enables higher output power, with module performance reaching up to 100W, even in compact formats. Enhanced low-light response ensures superior energy production during mornings, evenings, and cloudy conditions. Built with N-type solar cells, the module naturally exhibits very low LID (Light-Induced Degradation) and excellent resistance to PID (Potential-Induced Degradation), maintaining long-term performance and maximizing power generation. These combined features make the module highly durable, efficient, and optimized for consistent energy yield in a wide range of environmental conditions.

Specifications:

  • Maximum power: 100W
  • Voltage at Pmax (Vmp): 23.04V
  • Current at Pmax (Imp): 4.34A
  • Open circuit voltage (Voc): 27.72V
  • Short circuit current (Isc): 4.49A
  • Short circuit I temp coeff: +0.04% / ºC
  • Open circuit V temp coeff: -0.23% / ºC
  • Output power temp coeff: -0.28% / ºC
  • Wind survivability: 201kph (125mph)
  • Hailstone survivability: 1" @ 51mph
  • Operating temp: -40~85ºC
  • Module efficiency: 21%
  • PV cable length with PV connectors: 914mm (36”)
  • Size: 770 x 620 x 30mm (30.3 x 24.4 x 1.18”)
