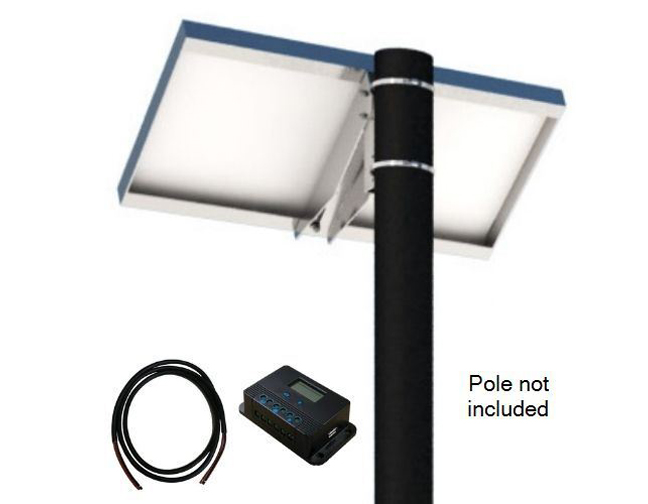

Tycon TPSK12-100W - 12V 100W Solar Panel Kit w/Ctrl, Mount, Cable, 12V 20A PWM Solar Chrg Ctrl w/Status Disp and 20A Load Ctrl,
by TYCON SYSTEMS
|
|
|
|
- Complete Kit – Solar Panel, Pole/Wall Mount, Outdoor 12AWG Cable, Battery Charge Controller
- Accommodate 2" to 6" dia. Pole or Wall Mount
- Quick tilt adjustment (15° to 65°)
- Certified for up to 110MPH Winds
|
|
|
Tycon TPSK12-100W
The TPSK series of solar panel kits come complete with high efficiency monocrystalline solar panel, side of pole/wall mounts, PWM or MPPT Charge Controller and outdoor rated 12AWG cable. They are ready for quick connection to Tycon Power® outdoor UPSPro® Systems or any other application requiring solar power. The panels provide excellent low light performance and long life (25years). The rugged aluminum frame and high transparency, low iron, tempered glass withstands high wind, hail and snow loading. The mounts are heavy duty aluminum with stainless steel hardware. They are a simplified design that makes them easy to install, saving precious installer time. The mounts are designed for pole mounting but can also be wall mounted. They provide quick tilt adjustment for positioning the panel to proper sun angles for summer and winter sun. Operating temperature is -40C to +85C.
Specifications
- Solar Panel Size: 30" x 24"
- Solar Charger Model: TP-SC24-20
- PolE Mount Model: TPSM-30-80-SP
- Solar Panel Max Current: 4.34A
- Continuous Power (6 Hours Peak Sun): 25W
- Weight: 10kg (22lb)
- 12AWG PV Cable Length: 6'
- Wind speed rating: 110MPH
|
|
