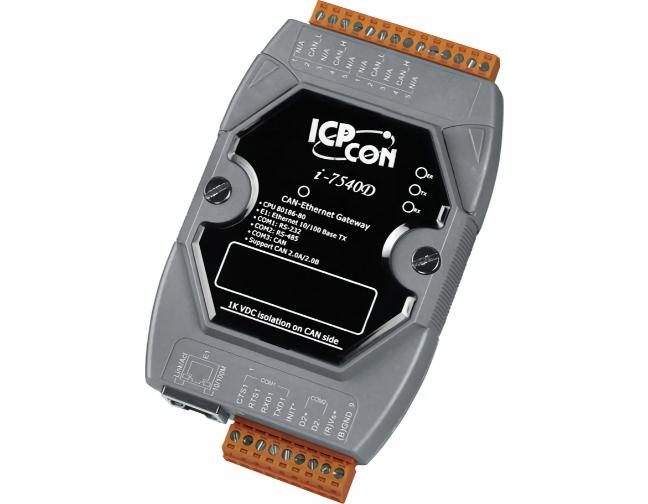

I-7540D - CAN Ethernet Gateway enables CAN networks to integrate with the Internet / Ethernet. Supports operating temperatures between -25 to 75°C.
I-7540D.html
| Model
|
I-7540D
|
| CPU
|
RDC186, 80MHz or compatible
|
| Flash
|
512K bytes
|
| SRAM
|
512K bytes
|
| EERROM
|
16K bytes
|
| Ethernet port
|
10/100 Base-T
|
| Real Time Clock
|
Year-2000 compliance; seconds, minutes,
hours, date of the month, year, valid up from 1980 to 2079
|
| CAN Signal Support
|
CAN_H, CAN_L
|
| Connecter
|
5-pin screw terminal connecter
|
| Power Consumption
|
3W
|
| COM1
|
RS-232: TXD, RXD, RTS, CTS, GND
|
| COM2
|
RS-485: D2+, D2-
|
| COM Speed
|
115200 bps max
|
| CAN Controller
|
Phillip SJA1000T CAN Controller
|
| CAN Transceiver
|
Phillip 82C250 CAN Transceiver
|
| CAN bus Speed
|
1Mbps Max
|
| LED Directors
|
ER, TX, RX
|
| Display
|
7-segment LED: 5 digits
|
| Isolated
|
2500Vrms on CAN side
|
| Reauired Supply Voltage |
+10 ~ +30VDC
|
| Operating Temp
|
-25C to 75C
|
| Storage Temp
|
-30C to 85C
|
| Himidity
|
5 ~ 95%
|
| Dimensions
|
123mm x 64.5mm x 19.6mm
|
|
