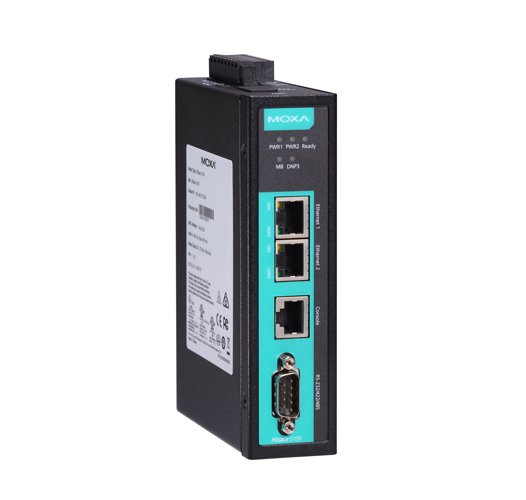

MGate 5109 - 1-port Modbus-to-DNP3 gateway, 0 to 60  Degree C operating temperature by MOXA

MGate 5109 - 1-port Modbus-to-DNP3 gateway, 0 to 60 Degree C operating temperature
by MOXA

Write a review Write a review
  • Supports Modbus master/slave and DNP3 master/outstation
  • Up to 31 Modbus serial slaves or DNP3 serial outstations
  • Up to 32 Modbus TCP slaves or DNP3 TCP/UDP outstations
  • Supports DNP 3.0 subset level 2
  • DNP3 master mode supports up to 26600 points
  • DNP3 master and outstation modes support time-synchronization
  • Complete diagnosis information for maintenance
  • Embedded Modbus and DNP3 serial traffic monitor
  • Redundant dual DC power inputs and relay output
  • microSD card for configuration backup and system log
  • -40 to 75°C wide operating temperature models available
  • Serial port with 2 kV built-in isolation protection
  • Built-in Ethernet cascading for easy wiring



Mfg SKU # : MGate 5109
Our Price : $584.50
Stock :19
Quantity :
The MGate 5109 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and DNP3 serial/TCP/UDP protocol conversion. All models are protected with a rugged metallic casing, are DIN-rail mountable, and offer built-in serial isolation. The MGate 5109 supports transparent mode for easily integrating Modbus TCP to Modbus RTU/ASCII networks or DNP3 TCP/UDP to DNP3 serial networks.The MGate 5109 series gateways support Modbus and DNP3 Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as slave ID and register address, 5109 also support agent mode to exchange data between Modbus and DNP3 networks or to act as a data concentrator for multiple Modbus slaves or multiple DNP3 outstations. The rugged design is suitable for industrial applications such as power, oil & gas, and water and wastewater.

Easy Configuration via Web Console

The MGate 5109 series comes with an illustrated Quick Setup guide designed to make configuration easy. With Quick Setup, you can easily access protocol conversion modes and finish the configuration in a few steps. The MGate 5109 series also supports Auto Detection for DNP3 serial outstations, allowing the MGate 5109 to automatically acquire all outstation objects when configured as a DNP3 master.

Modbus and DNP3 Protocol Traffic Monitor

The MGate 5109 series gateways support Modbus and DNP3 Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as slave ID and register address, or incorrect command configuration. With Modbus/DNP3 Protocol Traffic Monitor, you can check the captured data and easily identify the root cause.

Variety of Maintenance Functions

The MGate 5109 series gateway provides a web console and Telnet console for remote maintenance. Encryption communication functions, including HTTPS and SSH, are supported to provide better network security. In addition, firmware log functions are provided to record connection events and Modbus maintenance events. Users can review log data remotely through the web console.
Ethernet Interface
Protocols Modbus TCP client/server, DNP 3.0 TCP/UDP master/outstation
Number of Ports 2 (1 IP, Ethernet cascade)
Speed 10/100 Mbps, Auto MDI/MDIX
Connector 8-pin RJ45
Magnetic Isolation Protection 1.5 kV (built-in)
 Serial Interface
Protocols Modbus RTU/ASCII Master/Slave
Number of Ports 1
Serial Standards RS-232/422/485, software selectable
Connectors DB9 male
RS-485 Data Direction Control ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485 1 kΩ, 150 kΩ
Terminator for RS-485 120 Ω
Isolation 2 kV (built-in)
 Serial Communication Parameters
Data Bits 7, 8
Stop Bits 1, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, RTS Toggle (RS-232 only)
Baudrate 50 bps to 921.6 kbps
 Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
 Modbus
Functions Supported 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands 100
Max. No. of Connections MGate as Modbus TCP Master: 32 slave connections
MGate as Modbus TCP slave: 16 master connections
 DNP3
Max. No. of Connections • Transparent mode:
16 master connections or 32 outstation connections
• Agent mode:
MGate as DNP3 TCP/UDP master: 32 outstation connections
MGate as DNP3 TCP/UDP outstation: 1 master connection
DNP3 Internal Database • For each outstation:
Binary Inputs: 256 points
Analog Inputs: 64 points
Counters: 64 points
Binary Outputs: 256 points
Analog Outputs: 64 points
• When the MGate 5109 is configured as a DNP3 outstation
Bina
 Software
Configuration Options Web Console, Serial Console Utility
Configuration MXview, SNMP (v1, v2, v3), Private MIB
 Physical Characteristics
Housing Metal, IP30
Weight 507 g (1.12 lb)
Dimensions 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Storage Card Slot 1 microSD (SDHC) card slot supports up to 32 GB
Relay Alarm Circuit 3-pin circuit with current carrying capacity of 2 A @ 30 VDC
 Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Vibration IEC 60068-2-6, IEC 60068-2-64
Shock IEC 60068-2-27
Drop IEC 60068-2-32
 Power Requirements
Input Voltage 12 to 48 VDC
Input Current 455 mA @ 12 VDC; 125 mA @ 48 VDC
Power Connector Terminal block
 Standards and Certifications
Safety UL 508, EN 60950-1
Hazardous Location Class 1 Division 2, ATEX, IECEx
EMC EN 55022/24
EMI CISPR 22, FCC Part 15B Class B
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
IEC 61000-4-8 PFMF
 MTBF (mean time between failures)
Time 859,422 hrs
Standard Telcordia SR332
