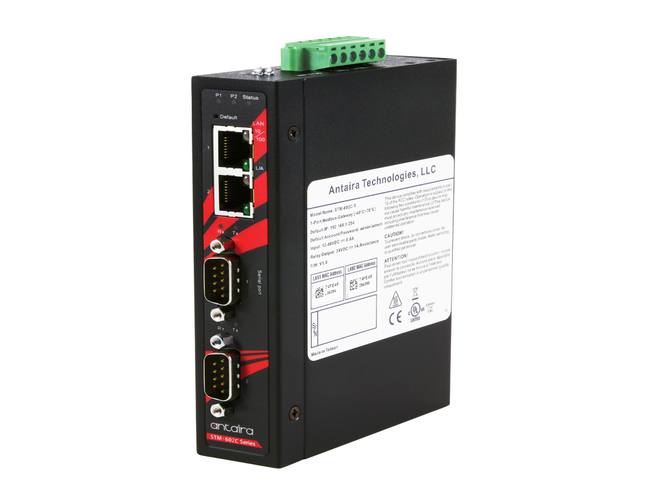

Antaira STM-602C-T - *Discontinued* - Industrial Modbus TCP (two Ethernet port) to two Serial (232, 422, 485) RTU / ASCII Gatewa
by ANTAIRA
|
|
|
|
STM-602C-T_SUMMARY.html
- 2*10/100 Mbps Ethernet Ports for LAN Redundancy
- Integrates Modbus TCP and Modbus RTU/ASCII Networks
- Supports Up to 921.6 kbps and Any Baud Rate Setting
- Supports Up to 16 Connections per Serial Port Under Modbus Master Mode and 32
- Sessions Under Modbus Slave Mode
- Software-selectable RS-232/422/485 Communication
- Automatic RS-485 Data Flow Control
- Redundant Power Input: 12~48VDC
- Power Polarity Reverse Protection
- Overload Current Protection
- DIN-Rail or Wall Mountable
- Wide Temperature Model
|
|
|
STM-602C-T_DESCRIPTION.html
Antaira Technologies' STM-602C-T is an industrial MODBUS gateway that allows legacy MODBUS RTU/ASCII devices to operate on a MODBUS TCP network. It can be configured for either MODBUS serial master or slave to communicate with MODBUS TCP's slave or master. The STM-602C-T features two independent Ethernet ports and MAC addresses to provide redundancy and reliability. These devices provide an economical way of connecting MODBUS RTU/ASCII devices to networks accessible anywhere in the world. This model has an extended operating temperature range -40 to 70C.
|
|
|
|
