NPort S9650I-16-2WV-SSC-T - 16-port,3-in-1 rugged device server,2x10/100M RJ45 1588v2,2xFiber single-SC,24/48 VDC,-40to85 Degree
by MOXA

NPort S9650I-16-2WV-SSC-T is the NPort S9650I Series 8/16-port RS-232/422/485 device servers, which come with a built-in full-function managed Ethernet switch, are designed specifically for the harsh environmental conditions found in electrical substations. With both fiber and wired Ethernet ports supported, the combination of a device server and Ethernet switch gives users the ability to easily install, manage, and maintain the NPort S9650I itself, as well as attached serial devices.

Electromagnetic Compatibility for Harsh Substation Environments

The NPort S9650I Series supports a high level of surge protection to prevent damage from the types of power surges and EMI one finds in electrical substations and industrial automation applications. Combined with a -40 to 85°C operating temperature range and galvanized steel housing, the NPort S9650I is suitable for a wide range of industrial environments.

Another plus is the NPort S9650I’s dual power supplies, which provide both redundancy, as well as a wide range of voltage inputs. The WV models accept a 24/48 VDC power input (ranging from 18 to 72 VDC), and the HV models accept a power input of 88 to 300 VDC and 85 to 264 VAC.

Power SCADA With IEC 61850 MMS for Easy Maintenance

The current trend in power SCADA applications is to control and monitor both IT devices (switches, routers, etc.) and IEDs (sensors, actuators, etc.) with the MMS protocol. Contrast this with the more traditional management approach of using SNMP for IT devices and MMS for IEDs. In fact, SIs may even need to manage a variety of legacy devices that use proprietary communications protocols.

The NPort S9650I device servers are the world’s first device servers to integrate MMS into an IT-type device designed specifically for power SCADA applications. The NPort S9650I even supports using MMS to monitor serial communications between the S9650I and legacy devices.

Input/Output Interface

• Alarm Contact Channels

  Resistive load: 1 A @ 24 VDC

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector)

  NPort S9650I-E Series: 4 RJ45 ports
  NPort S9650I-MSC Series: 2 RJ45 ports
  NPort S9650I-SSC Series: 2 RJ45 ports
  NPort S9650I-IRIG Series: 2 RJ45 ports

• 100BaseFX Ports (multi-mode SC connector)

  NPort S9650I-MSC Series: 2 multi-mode SC ports

• 100BaseFX Ports (single-mode SC connector)

  NPort S9650I-SSC Series: 2 single-mode SC ports

• Magnetic Isolation Protection

  1.5 kV (built-in)

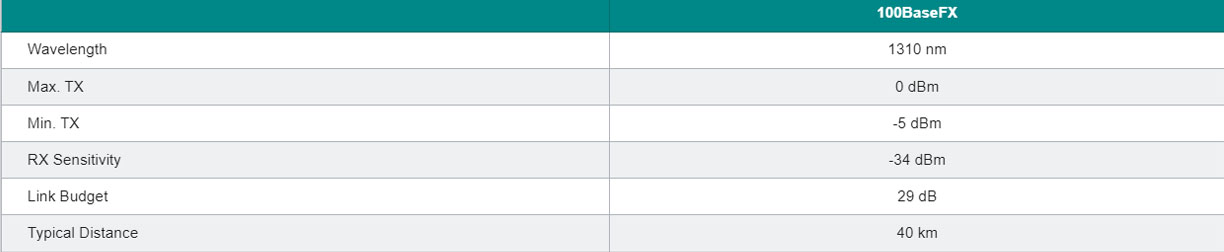

• Optical Fiber

• Optical Fiber



  Standards

  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3u for 100BaseT(X) and 100BaseFX

  Switch Properties

  • IGMP Groups

    256

  • Max. No. of VLANs

    64

  • Priority Queues

    4

  • VLAN ID Range

    VID 1 to 4094

  Ethernet Software Features

  • Configuration Options

    Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility

  • Management

    DHCP Client, DHCP Option 82, HTTP, IEC 61850 MMS, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Web Console

  • Filter

    GMRP, GVRP, IGMP v1/v2

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    Android 3.1.x and later

  • Industrial Protocols

    Modbus TCP Server (Slave), DNP3 TCP Outstation

  • Time Management

    NTP Server/Client, SNTP, IEEE 1588v2 PTP (hardware-based), IRIG-B

  • MIB

    Bridge MIB, Device Settings MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RFC1213, RFC1317, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2

  • Security

    HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH

  IRIG-B Interface

  • PWM/PPS Output, BNC Connector

    NPort S9650I-IRIG Series: 1

  • PWM/PPS Output, DB9 Female

    NPort S9650I-8B-2HV-IRIG-T: 8
    NPort S9650I-16B-2HV-IRIG-T: 16

  • PWM Input, BNC Connector

    NPort S9650I-IRIG Series: 1

  Serial Interface

  • Connector

    NPort S9650I-8/-16 Series: DB9 male
    NPort S9650I-8B/-16B Series: DB9 female
    NPort S9650I-8F/-16F Series: Multi-mode fiber ST connector

  • No. of Ports

    8 or 16

  • Serial Standards

    RS-232, RS-422, RS-485

  • Operation Modes

    Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode, Modbus mode, DNP3 mode, DNP3 Raw Socket mode, Disabled

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • Isolation

    2 kV

  • Surge

    4 kV

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Console Port

    RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)

  Serial Signals

  • RS-232

    NPort S9650I-IRIG Series: TxD, RxD, RTS, CTS, DTR/+IRIG-B, DSR, DCD, GND
    NPort S9650I Series: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    NPort S9650I-IRIG Series: TxD+, TxD-, RxD+, RxD-, GND, +IRIG-B
    NPort S9650I Series: Tx+, Tx-, Rx+, Rx-

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    NPort S9650I-IRIG Series: Data+, Data-, GND, +IRIG-B
    NPort S9650I Series: Data+, Data-, GND

  DIP Switch Configuration

  • Ethernet Interface

    Turbo Ring, Master, Coupler, Reserved

  Modbus TCP

  • Max. No. of Client Connections

    32

  • Max. No. of Server Connections

    16

  DNP3 (Transparent)

  • Max. No. of Master Connections

    16

  • Max. No. of Outstation Connections

    32

  Reliability

  • Automatic Reboot Trigger

    Built-in WDT

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  Power Parameters

  • No. of Power Inputs

    2

  • Reverse Polarity Protection

    Supported

  • Input Current

    0.65 A @ 100 VAC, 0.47A @ 100 VDC

  • Input Voltage

    110/220 VAC/VDC (100 to 240 VAC, 100 to 250 VDC)

  Physical Characteristics

  • Housing

    Metal

  • Installation

    19-inch rack mounting

  • Dimensions

    457 x 32 x 330 mm (18 x 1.25 x 12.99 in)

  • Weight

    Product only: 5.15 kg (11.35 lb)

  Environmental Limits

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  Standards and Certifications

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIPs

  • Environmental Testing

    IEC 60068-2-2
    IEC 60068-2-14

  • Power Substation

    IEC 61850-3, IEEE 1613

  • Safety

    EN 61010-2-201, UL 61010-2-201

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6, IEC 60068-2-64

  Declaration

  • Green Product

    RoHS, CRoHS, WEEE

  MTBF

  • Time

    NPort S9650I-8-2HV-E-T: 224,670 hrs
    NPort S9650I-8-2HV-MSC-T: 220,944 hrs
    NPort S9650I-8-2HV-SSC-T: 220,944 hrs
    NPort S9650I-8B-2HV-IRIG-T: 213,025 hrs
    NPort S9650I-8F-2HV-E-T: 311,734 hrs
    NPort S9650I-8F-2HV-MSC-T: 304,587 hrs
    NPort S9650I-8F-2HV-SSC-T: 304,587 hrs
    NPort S9650I-16-2HV-E-T: 158,816 hrs
    NPort S9650I-16-2HV-MSC-T: 156,949 hrs
    NPort S9650I-16-2HV-SSC-T: 156,949 hrs
    NPort S9650I-16B-2HV-IRIG-T: 157,770 hrs
    NPort S9650I-16F-2HV-E-T: 261,817 hrs
    NPort S9650I-16F-2HV-MSC-T: 256,761 hrs
    NPort S9650I-16F-2HV-SSC-T: 256,761 hrs

  • Standards

    Telcordia SR332
