485 2 PORT
by Advantech

Supports RS-232/422/485 serial communications
Provides 10/100 Mbps auto-sensing Ethernet port
Supports baud rate up to 921.6 kbps
Provides COM port redirection (Virtual COM), TCP and UDP operation modes
Allows a max. of 5 hosts to access one serial port
Allows a max. of 16 hosts to be accessed as TCP client mode
Supports auto re-connection function
Supports Windows 2000/XP/Vista drivers
Built-in 15 KV ESD protection for all serial signals
Automatic RS-485 data flow control
Supports remote update firmware

Description
Specification
Datasheet

The Advantech ADAM-4500 is a fully functional stand-alone controller for industrial automation and control. It provides an ideal environment for controlling PC hardware with a minimal amount of development effort. Built-in ROM-DOS lets users run standard PC programs or new programs produced by PC language development tools. ROM-DOS is an MS-DOS equivalent operating system allowing you to run all standard PC software.

The ADAM-4500 has two communication ports (COM 1 and COM2). These provide easy communication between the controller and other devices in your applications. COM1 can be configured for RS-232 or RS-485 communication via a jumper setting, while COM2 is dedicated as an RS-485 port. This design allows the controller to be used in a variety of applications For example, a user can download an application into the ADAM-4500's on-board Flash memory while the ADAM-4500 is connected to an RS-485 network, then let it control all the modules in the network.

The real-time clock in the controller ensures an accurate time recording while the system operates. The watchdog timer is designed to automatically reset the CPU when the system fails.

The Advantech ADAM-4500 module provides 170 KB ROM for user application downloading and 234 KB RAM for application operation. Its built-in ROM-DOS is an MS-DOS Equivalent operating system, which provides all of the basic functions of MS-DOS except BIOS. Application programs written in high level languages such as C or C++ can run under ROM-DOS. Application programs should be converted into 80188 compatible code before being downloaded into the ADAM-4500. The download utility is included with the ADAM-4500.

Ethernet Communications

Compatibility: IEEE 802.3, IEEE 802.3u
Speed: 10/100 Mbps
No. of Ports: 1
Port Connector: 8-pin RJ45
Protection: Built-in 1.5 KV magnetic isolation

Serial Communications

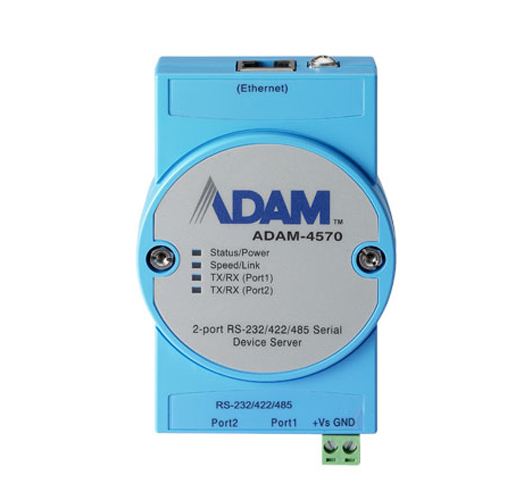

Port Type: ADAM-4570: RS-232/422/485
No. of Ports: 2
Port Connector: 10-pin RJ48
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Odd, Even, Space, Mark
Flow Control: XON/XOFF, RTS/CTS
Baud Rate: 50 bps ~ 921.6 kbps, any baud rate setting
Serial Signals: RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, RI, GND RS-422: TxD+, TxD-, RxD+, RxD-, GND RS-485: Data+, Data-, GND
Protection: 15 KV ESD protection for all signals

Software

OS Support: 32-bit/64-bit Windows XP/Vista/7/8, Windows Server 2003/2008/2008 R2/2012, Windows CE 5.0, and Linux
Utility Software: Advantech EKI Device Configuration Utility
Operation Modes: COM port redirection (Virtual COM) TCP/UDP server (polling) mode TCP/UDP client (event handling) mode Pair Connection (peer to peer) mode
Configuration: Windows utility, Telnet console, Web Browser
Protocol: ARP, ICMP, IP, TCP, UDP, BOOTP, DHCP Client, Auto IP, Telnet, SNMP, HTTP, DNS, SMTP

Mechanics
