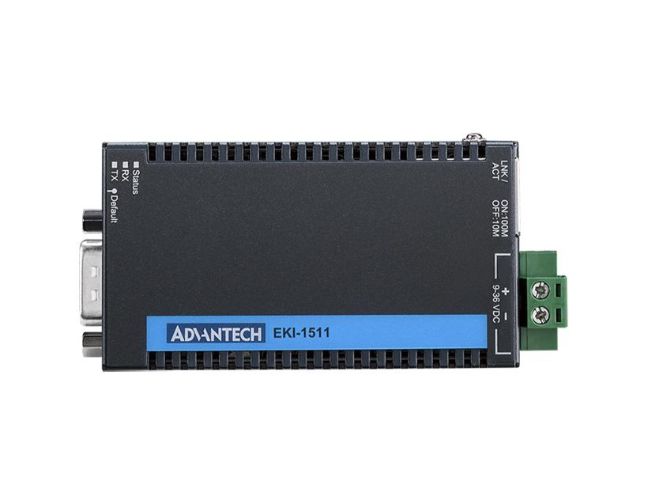

Advantech EKI-1511IL-A - 1-port entry level device server RS-232 with Wide Operating Temperature
by Advantech
|
|
|
|
EKI-1511IL-A_SUMMARY
- 1 x 10/100 Mbps Ethernet port
- Provides COM port redirection (Virtual COM)
- TCP
- and UDP operation modes
- Baud rate: supports up to 230.4 Kbps
- Maximum of five hosts can access one serial port
- Maximum of 16 hosts accessed in TCP client mode
- Built-in 8-kV ESD protection for all serial signals
- Provides multiple configuration configuration methods including Windows utility
- Telnet console
- and web browser
- "I" models support a wide operating temperature
- "L" models support RS-232 only; "X" models support RS-422/485
|
|
|
EKI-1511IL-A_DESCRIPTION
The EKI-1511IL-A focuses on the entry level device server market, providing an economic solution that is designed to
connect RS-232 or RS-422/485 serial devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet
LAN.
EKI-1511L-A.html
| Serial Communication |
| Serial Standard |
RS-232 |
| Certification |
| EMC |
CE, FCC |
| EMI |
EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A |
| EMS |
EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024 |
| Freefall |
IEC 60068-2-32 |
| Safety |
UL 62368 |
| Shock |
IEC 60068-2-27 |
| Vibration |
IEC 60068-2-6 |
| Ethernet Communication |
| RJ-45 Port Connector Type |
RJ-45 |
| Serial Communication |
| Serial Port Connector Type |
DB9 male |
| Environment |
| Operating Temperature |
-40 ~ 75°C (-40 ~ 167°F) |
| Storage Temperature |
-40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication |
| Ethernet Standard |
IEEE 802.3 , 802.3u |
| RJ-45 Port Number |
1 |
| RJ-45 Transmission Speed |
10/100 Mbps |
| Serial Communication |
| Serial Port Number |
1 |
| Mechanism |
| Dimensions (W x H x D) |
46 x 85.1 x 21.2 mm (1.81 x 3.35 x 0.83 in.) |
| Enclosure (Metal) |
Metal with solid mounting hardware |
| IP Rating |
IP30 |
| Mounting (DIN-rail) |
Yes |
| Mounting (Wall) |
Yes |
| Weight |
125 g |
| Power |
| Power Consumption |
1W |
| Power Input (DC) |
9 ~ 36 VDC |
| Protection |
| Ethernet Isolation |
Built-in 2.25 k VDC magnetic isolation |
| Serial Communication |
| Baud Rate |
300~230.4 kbps |
| Software |
| Configuration |
Windows utility, Telnet console, Web Browser |
| Operation Mode |
COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode,
Pair connection |
| Driver |
Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux |
|
|
|
|
