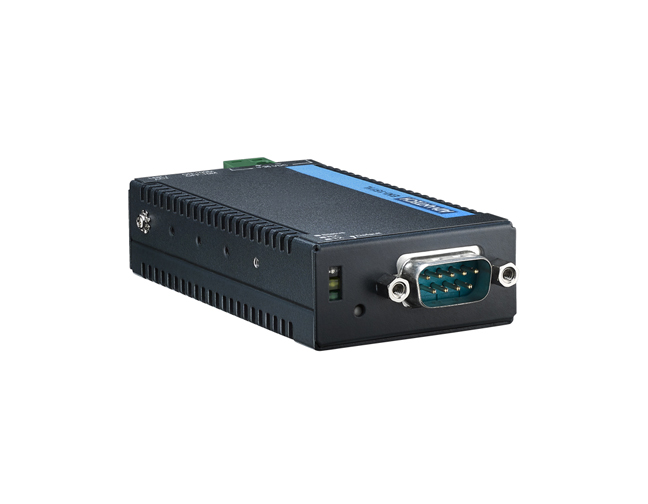

Advantech EKI-1511L-A- *Discontinued* - 1-Port Serial Device Server
by Advantech
|
|
|
|
- Provides COM port redirection (Virtual COM), TCP, and UDP operation modes
- Baud rate: supports up to 230.4 Kbps
- Maximum of five hosts can access one serial port
- Maximum of 16 hosts accessed in TCP client mode
- Built-in 8-kV ESD protection for all serial signals
- Provides multiple configuration configuration methods including Windows utility, Telnet console, and web browser
- Supports 32/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, and Linux
- 1 x 10/100 Mbps Ethernet port
|
|
|
EKI-1511L-A_DESCRIPTION.html
The EKI-1511L-A focuses on the entry level device server market, providing an economic solution that is designed to connect RS-232 or RS-422/485 serial devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet LAN.
| Certification |
| EMC |
CE, FCC |
| EMI |
EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A |
| EMS |
EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024 |
| Freefall |
IEC 60068-2-32 |
| Safety |
UL 60950-1 |
| Shock |
IEC 60068-2-27 |
| Vibration |
IEC 60068-2-6 |
| Ethernet Communication |
| RJ45 Port Connector Type |
RJ45 |
| Ethernet Standard |
IEEE 802.3 , 802.3u |
| Ethernet Port Number |
1 |
| RJ45 Transmission Speed |
10/100BaseT(X), Auto-sensing |
| Serial Communication |
| Serial Port Connector Type |
DB9 male |
| Serial Port Number |
1 |
| RS-232 |
Yes |
| Baud Rate |
300~230.4 kbps |
| Serial Transmission Speed |
300~230.4 kbps |
| Environment |
Humidity (Operating Range) |
10 ~ 95% RH |
Temperature (Min. Operating) |
-10°C |
Temperature (Max. Operating) |
60°C |
Temperature (Operating Range) |
-10 ~ 60°C (14 ~ 140°F) |
Temperature (Storage Range) |
-40 ~ 85°C (-40 ~ 185°F) |
| Mechanism |
Dimensions (W x H x D) |
46 x 85.1 x 21.2 mm (1.81" x 3.35' x 0.83') |
Enclosure (Metal) |
Metal with solid mounting hardware |
IP Rating |
IP30 |
Mounting (DIN-rail) |
Yes |
Mounting (Wall) |
Yes |
Weight |
125g |
| Power |
Power Connector Type |
Terminal block |
Power Consumption |
1W |
Power Input (DC) |
9 ~ 36 VDC |
| Protection |
Ethernet Isolation |
Built-in 2.25 k VDC magnetic isolation |
Serial Isolation |
Built-in 8 KV ESD for all signals |
Port to Port Isolation |
- |
| Software |
Configuration |
Windows utility, Telnet console, Web Browser |
Driver |
Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux |
Operation Mode |
COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode, |
|
|
|
|
