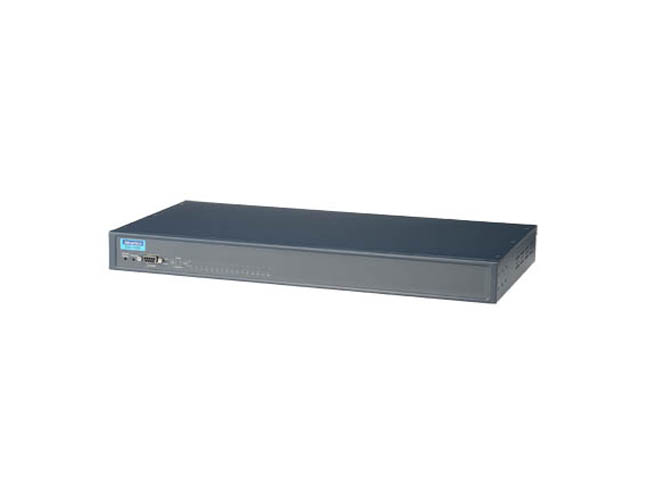

Advantech EKI-1526-BE - *Discontinued* - 16-PORT RS232/422/485 SERIAL SERVER, 2 ETH,-10~60C by Advantech

EKI-1526-BE - 16-PORT RS232/422/485 SERIAL SERVER

485 SERIAL SERVER, 2 ETH,-10~60C
by Advantech

16-port RS-232/422/485 serial communication
Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
Supports up to 921.6 kbps, and any baud rate setting
Provides COM port redirection (Virtual COM), TCP and UDP operation modes
Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
Built-in 15 KV ESD protection for all serial signals
SNMP MIB-II for network management
Built-in buzzer for easy location
Standard 1U rackmount size
Rear wiring
Automatic RS-485 data flow control

Description
Specification
Datasheet

The EKI-1528 and EKI-1526, EKI-1526-BE, are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can't connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Ethernet Communications
Compatibility	IEEE 802.3, IEEE 802.3u
Speed	10/100 Mbps, auto MDI/MDIX
No. of Ports	2
Port Connector	8-pin RJ45
Protection	Built-in 1.5 KV magnetic isolation
Serial Communications
Port Type	RS-232/422/485, software selectable
No. of Ports	EKI-1528/EKI-1528T: 8 EKI-1526/EKI-1526T: 16
Port Connector	8-pin RJ45
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Odd, Even, Space, Mark
Flow Control	XON/XOFF, RTS/CTS, DTR/DSR
Baud Rate	50 bps ~ 921.6 kbps, any baud rate setting 16 ports up to 230.4 kbps simultaneously
Serial Signals	RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, GND RS-422: TxD+, TxD-, RxD+, RxD-, GND RS-485: Data+, Data-, GND
Protection	15 KV ESD for all signals
Software
OS Support	32-bit/64-bit Windows XP/Vista/7/8/8.1, Windows Server 2003/2008/2008 R2/2012/2012 R2, Windows CE 5.0, and Linux12VDC
Utility Software	Advantech EKI Device Configuration Utility
Operation Modes	COM port redirection mode (Virtual COM) TCP/UDP server (polling) mode TCP/UDP client (event handling) mode Pair connection (peer to peer) mode RFC2217 mode
Configuration	Windows utility, Telnet console, Web Browser, serial console
Protocols	ARP, ICMP, IPv4, TCP, UDP, BOOTP/DHCP Client, Auto IP, Telnet, SNMP, HTTP, DNS, SMTP, NTP
Management	SNMP MIB-II
Mechanics
Dimensions (W x H x D)	440 x 44 x 220 mm (17.32" x 1.73" x 8.66")
Enclosure	SECC chassis
Mounting	Rack
General
LED Indicators	System: Power, System Status LAN: Speed, Link/Active Serial: Tx, Rx
Alert Tools	Built-in buzzer and RTC (real time clock)
Reboot Trigger	Reboot Trigger
Power Requirements
Power Input	EKI-1528/EKI-1526: 100 ~ 240 VAC , 47 ~ 63 Hz EKI-1528T/EKI-156T: 48 VDC, Terminal Block
Power Consumption	EKI-1528/EKI-1528T: 10 W EKI-1526/EKI-1526T: 12 W
Environment
Operating Temperature	-10 ~ 60°C (14 ~ 140°F)
Storage Temperature	-20 ~ 80°C (-4 ~ 176°F)
Operating Humidity	5 ~ 95% RH
Regulatory Approvals
EMC	CE, FCC Part 15 Subpart B (Class A)
