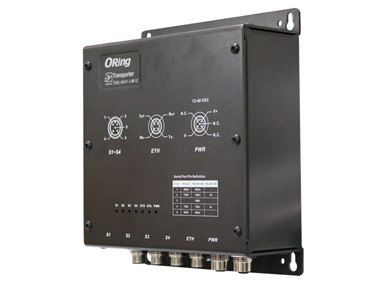

TDS-5041-I-M12 - EN50155 Industrial 4-port secure Isolate RS-422/485 to 1x10/100Base-T(X) Device Server (M12cconnectors)
by ORing Industrial Networking

IDS-5041-I-M12 is an innovative secure 4-port RS-422/485 to 1 port LAN secure device server, with TCP/IP and versatile operation modes: Virtual Com, Serial Tunnel, TCP Server, TCP Client, and UDP. In addition, the Windows untility, DS-Tool, could configure multiple devices and set up the mappings of Virtual Com easily. The features of NAT Router Pass Through, DDNS, and PPPoE make it more convenient for administrators to configure ORing’s device servers through NAT router from different IP domains or Internet via modem remotely. On the other hand, TDS-5041-I-M12 can simultaneously transfer data up to 5 redundant host PCs to aovid Ethernet connection breakdown or any host PC fails. Further, TDS-5041-I-M12 features HTTPS, SSH, and SSL encryption to assure the security of critical data transmission. TDS-5041-I-M12 supports 4xRS-422/485 interfaces on 5-pin M12 A-coding connectors and provides one wide range power input, 12~48 VDC, on a 5-pin M12 connector. With wide operating temperature, -40~70oC, TDS-5041-I-M12 could operate in the harsh industrial environment. Therefore, TDS-5041-I-M12 is the best solution to the high demand of secure serial to Ethernet critical data communication for rolling stock application.

Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX	1 (4-pin D-Coding in female connector)
Serial Ports
Connector	M12 x 4 (5-pin A-coding in male connector)
Operation Mode	RS-422 / 4(2)-Wire RS-485. Which can be configured by DS-Tool
Serial Baud Rate	110 bps to 460.8 Kbps
Data Bits	5, 6, 7, 8
Parity	odd, even, none, mark, space
Stop Bits	1, 1.5, 2
RS-422	Tx+,Tx-, Rx+, Rx-,GND
RS-485 (4-wire)	Tx+,Tx-, Rx+, Rx-,GND
RS-485 (2-wire)	Data+, Data-,GND
Isolating	2KV
Flow Control	XON/XOFF
Network Features
Network Protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, SSL, PPPoE, DDNS
LED Indicators
Power Indicator	PWR 1(2) / Ready : Red On : Power is on and booting up.  Red Blinking : Indicates an IP conflict, or DHCP or BOOTP server did not respond properly. Green On : Power is on and functioning Normally.  Green Blinking : Located by Administrator.
10/100Base-T(X) RJ45 Port Indicator	Green for port Link/Act at 100Mbps. Amber for port Link/Act at 10Mbps.
Serial TX / RX LEDs	Red : Serial port is receiving data  Green : Serial port is transmitting data
Power
Redundant Input Power	Power Inputs. 12-48VDC x 1(5-pin M12 female in A-coding)
Power Consumption (Typ.)	5.5 watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Physical Characteristics
Enclosure	IP-40
Dimensions (W x D x H)	170(W) x 65 (D) x 195(H) mm (6.69 x2.55x7.7.67 inch.)
Weight (g)	950g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5% to 95% Non-condensin
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A,
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
