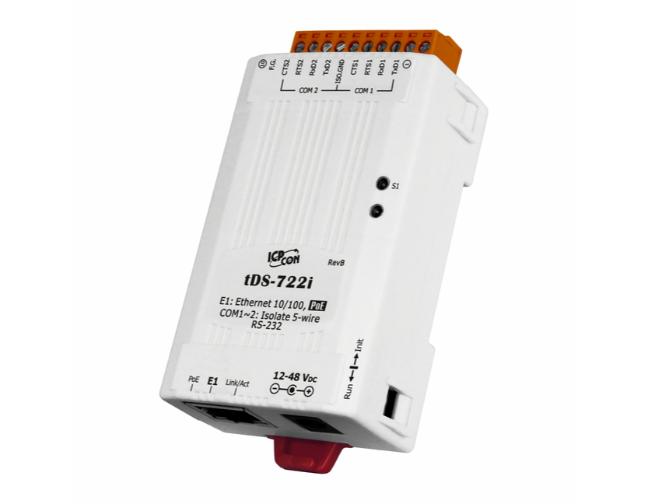

ICP DAS tDS-722i - Tiny Serial to Ethernet Device Server with PoE and 2 RS-232 Ports with Power Isolation (RoHS)
by ICP DAS
|
|
|
|
tDS-722i_SUMMARY.html
- Incorporates any RS-232/422/485 serial device in Ethernet
- Data transmission via Virtual COM or raw TCP connection
- VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7/8/10
- Max. connections : 1 socket per serial port is suggested
- Supports pair-connection (serial-bridge, serial-tunnel) applications
- Supports TCP client-mode and TCP server-mode operations
- Supports UDP responder for device discovery (UDP Search)
- Static IP or DHCP network configuration
- Easy firmware update via the Ethernet (BOOTP, TFTP)
- Tiny Web server for configuration (HTTP)
- Contains a 32-bit MCU that efficiently handles network traffic
- 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
- Allows automatic RS-485 direction control
- 3000 VDC Isolation and +/-4 kV ESD protection for i versions
- Male DB-9 or terminal block connector for easy wiring
- Tiny form-factor and low power consumption
- RoHS compliant & no Halogen
- Cost-effective device servers
|
|
|
tDS-722i_DESCRIPTION.html
ICP DAS USA's tDS-722i is a Serial-to-Ethernet device server that increases Ethernet and Internet connectivity to any RS-232 device while eliminating the cable length limitation of legacy serial communication. The tDS-722i can also be used for remote controlling of your serial devices through Ethernet network.
By using the VxComm Driver/Utility, the built-in COM port of the tDS-722i can be virtualized to a standard PC COM port in Windows. Many serial devices are not equipped with network ports; the tDS-722i allows those devices to connect to the network.Therefore, users can transparently access or monitor serial devices over the Internet/Ethernet without software modification.
The tDS-722i also adds 3000 VDC isolation and +/-4 kV ESD protection component that diverts the potentially damaging charge away from sensitive circuit to protect the modules and equipment from the sudden and momentary electric current.
tDS-722i.html
| Model |
RS-232 |
RS-422/485 |
RS-485 |
CPU |
Ethernet |
Baud Rate |
COM1 |
COM2 |
COM3 |
| tDS-712 |
1 |
- |
- |
32-bit ARM |
10/100 Base-TX, PoE |
115200 bps |
5-wire RS-232 |
- |
- |
| tDS-722 |
2 |
- |
- |
5-wire RS-232 |
5-wire RS-232 |
- |
| tDS-732 |
3 |
- |
- |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
| tDS-715 |
- |
1 |
- |
2-wire RS-485
4-wire RS-422 |
- |
- |
| tDS-725 |
- |
- |
2 |
2-wire RS-485 |
2-wire RS-485 |
- |
| tDS-735 |
- |
- |
3 |
2-wire RS-485 |
2-wire RS-485 |
2-wire RS-485 |
| tDS-718 |
1 |
- |
3-wire RS-232 |
- |
- |
2-wire RS-485
4-wire RS-422 |
| tDS-724 |
1 |
- |
1 |
2-wire RS-485 |
5-wire RS-232 |
- |
| tDS-734 |
2 |
- |
1 |
2-wire RS-485 |
3-wire RS-232 |
3-wire RS-232 |
|
|
